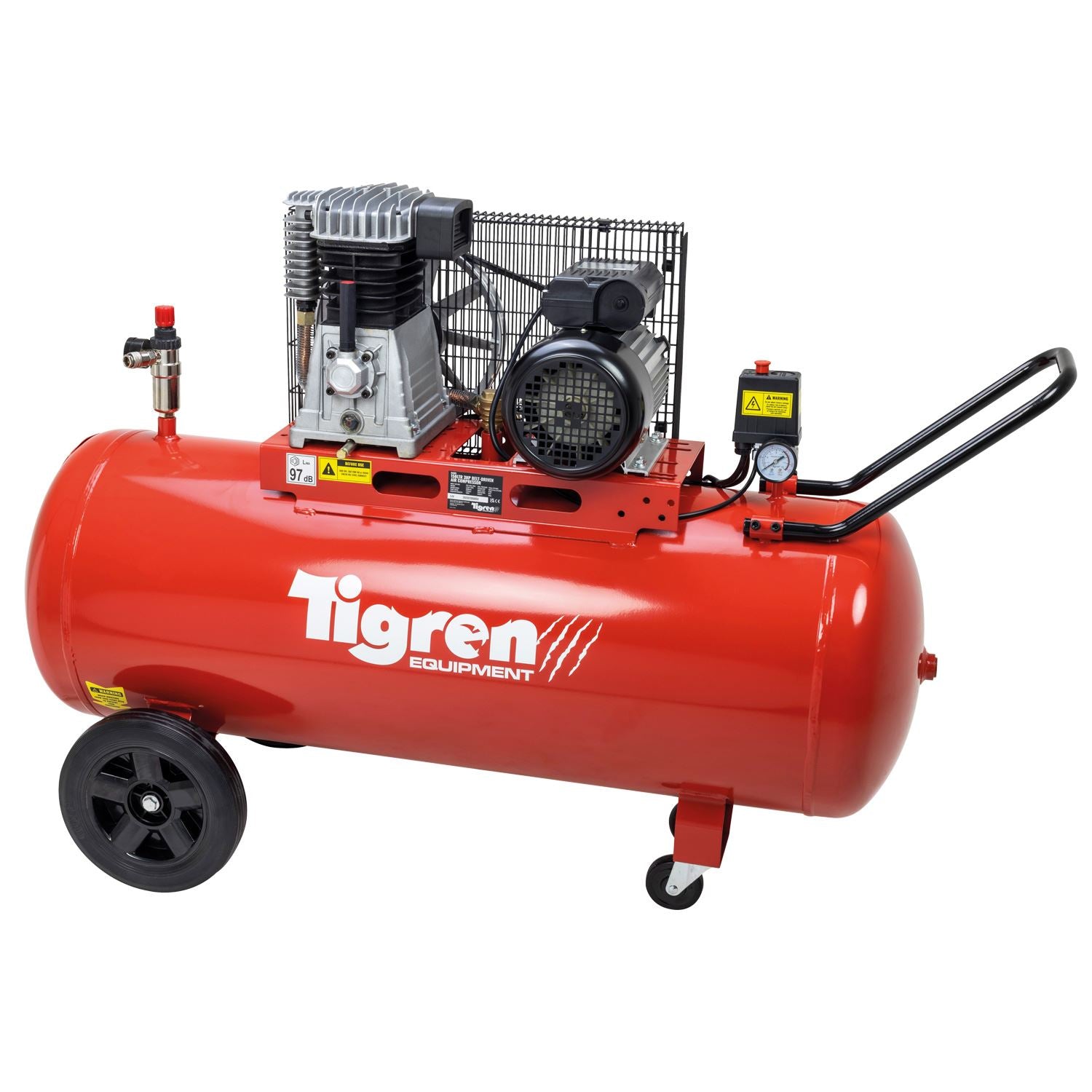

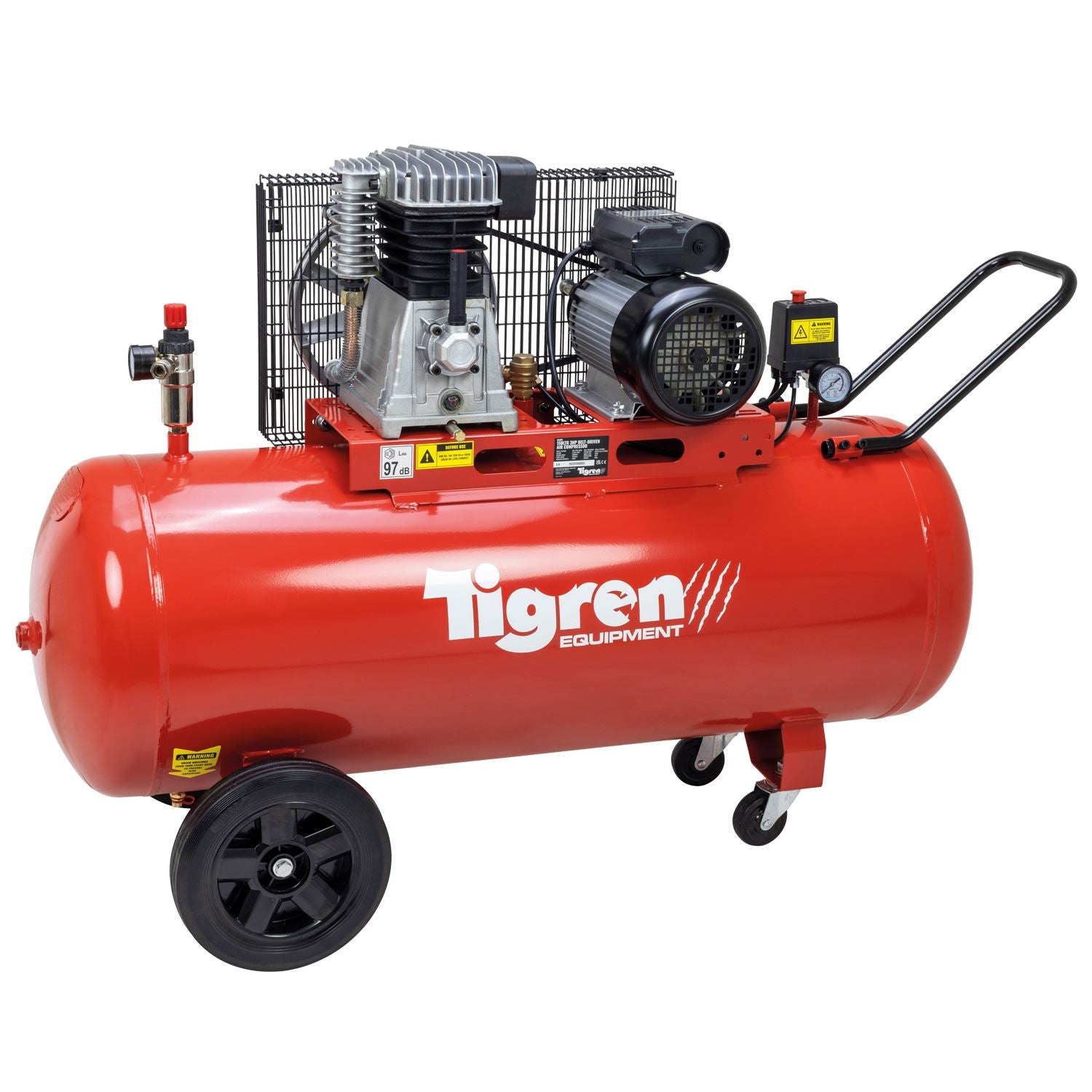

TIGREN 150ltr 3hp Belt-Driven Compressor

The TIGREN 150ltr 3hp Belt-Driven Compressor delivers performance and mobility to small and medium-sized workshops. This no-nonsense solution is ideal for demanding and busy work areas and is particularly suited to automotive and agriculture applications.

• Belt-driven transmission
• 150ltr air receiver
• Wheel-mounted design
• Twin cylinder splash oil-lubricated pump
• Heavy-duty brushless induction motor

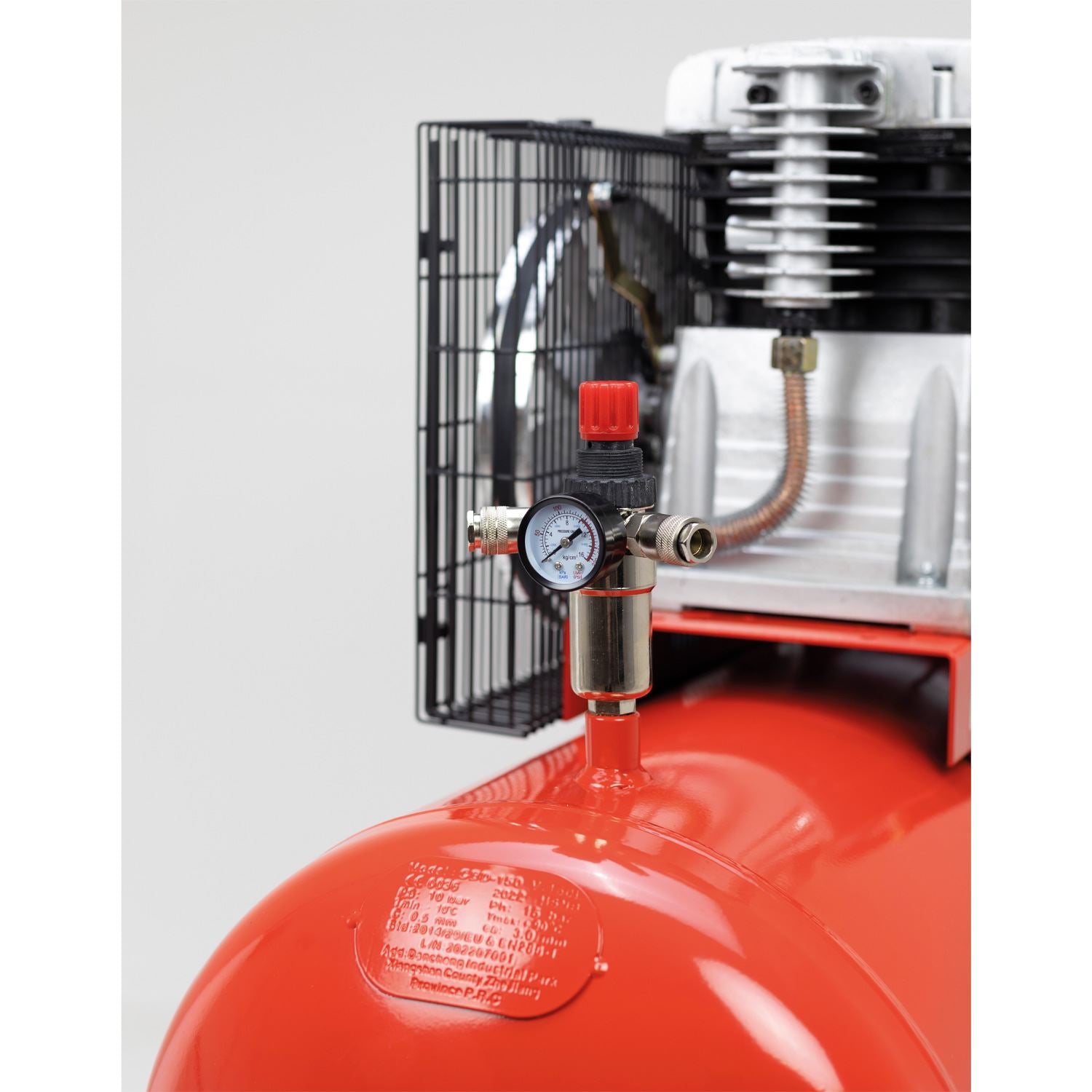

• Adjustable air regulator

Technical Specification

• ITEM NO. 04391
• Input Voltage: 230v (13A)
• Motor Power: 3hp (2.2kW)
• Receiver Size: 150ltr
• Max. Air Pressure: 150psi (10bar)
• Pump Speed: 1100rpm
• Piston Displacement: 14CFM (400ltr/min)
• Free Air Delivery (FAD): 10CFM (285ltr/min)
• Isolation Class: Class F
• Protection Type: IP54
• Motor Efficiency: 80%
• Noise Level: 97dB
