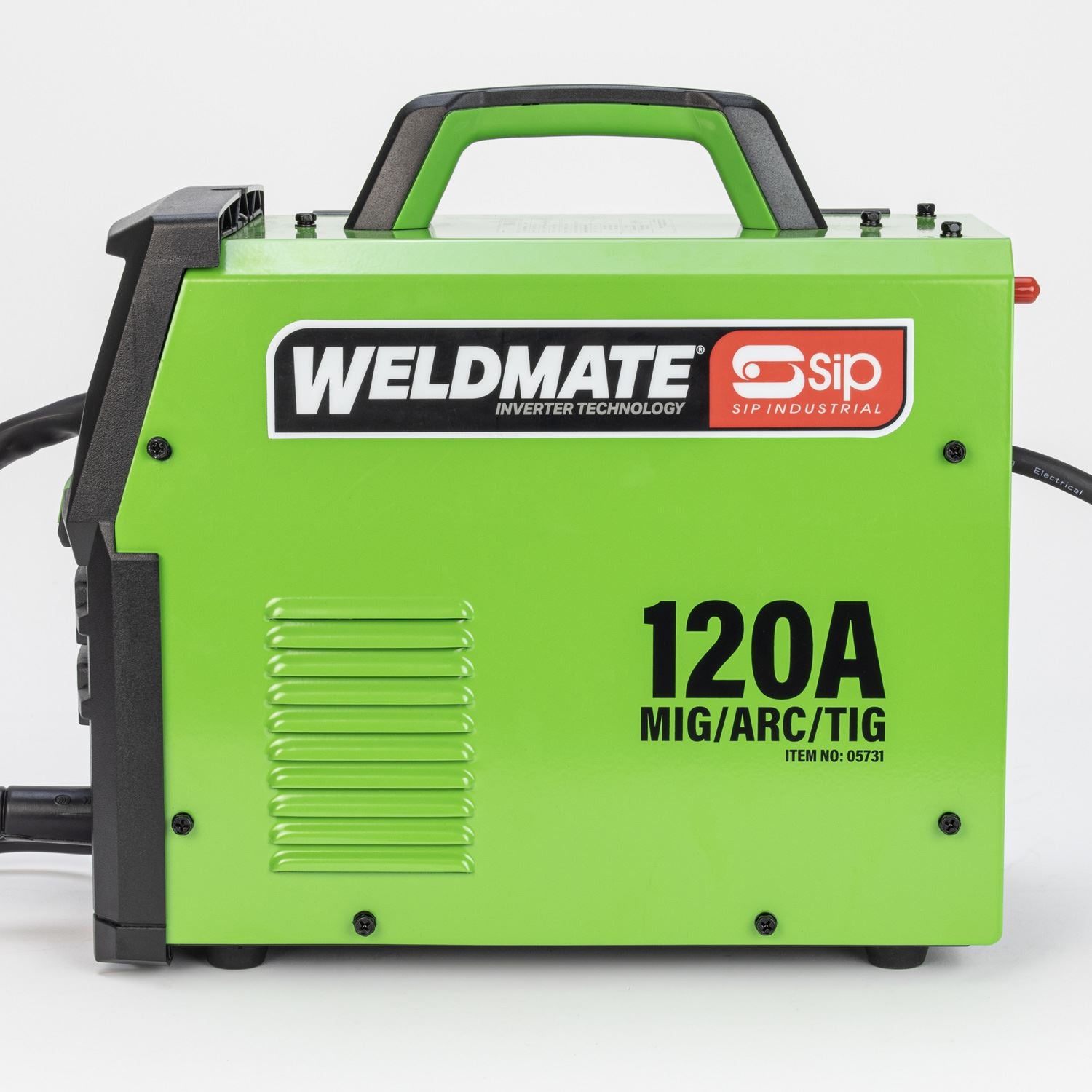

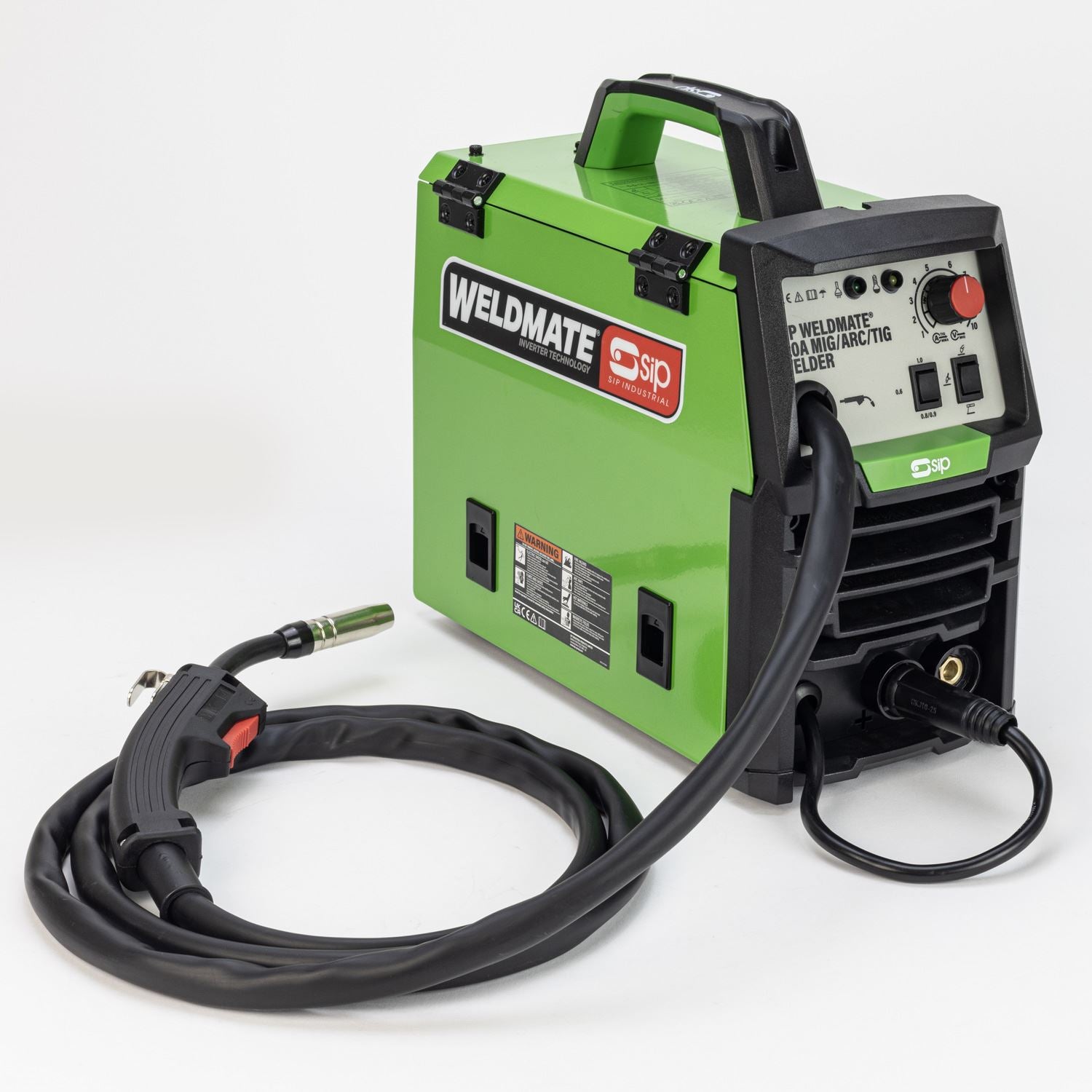

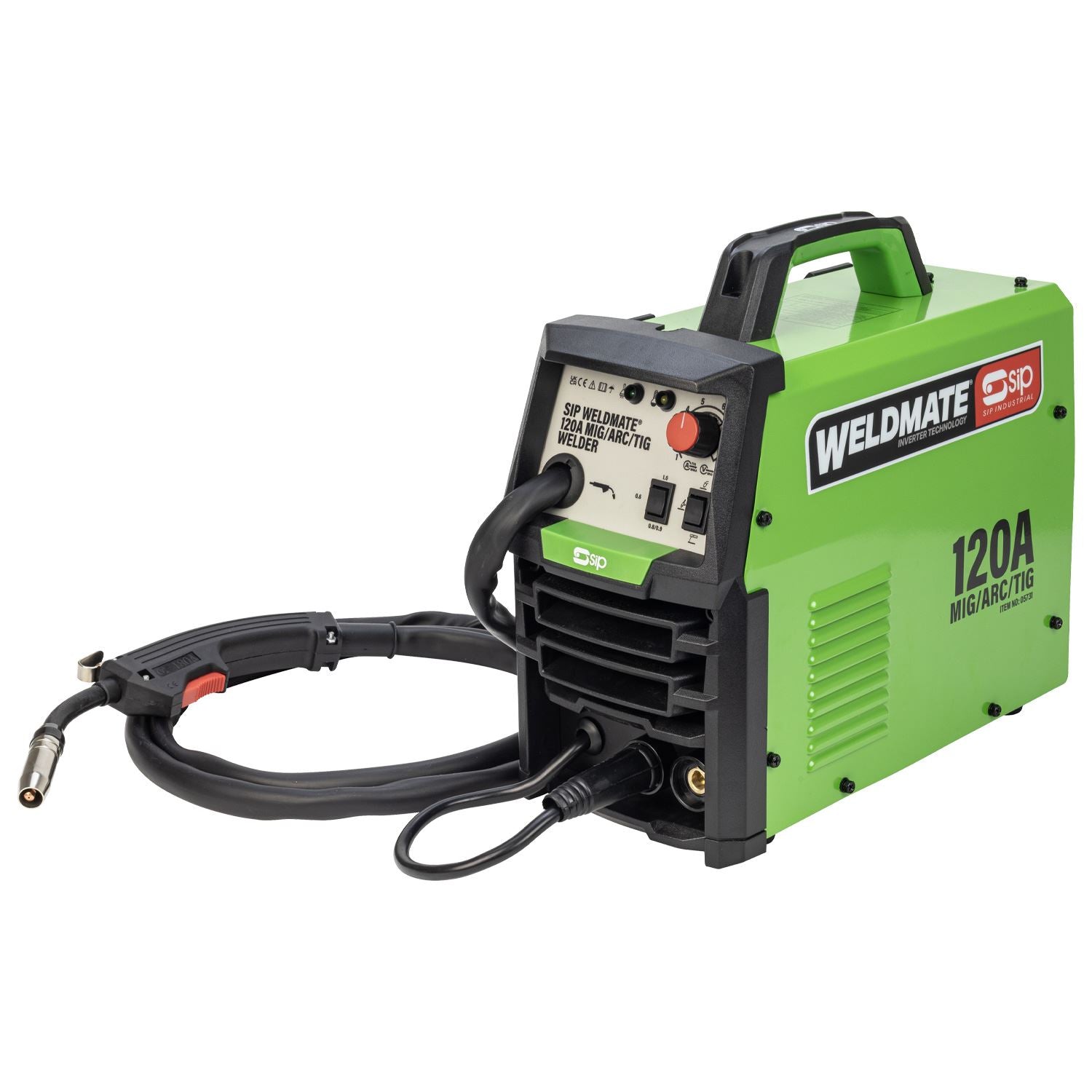

SIP WELDMATE 120A MIG Welder

The SIP WELDMATE� 120A MIG/ARC/TIG Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications.

Supplied with all accessories needed to weld straight from the box, this gas and gasless welder also operates from a 13A supply for added flexibility.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

Applications & uses: Perfect for entry level users and small workshop applications. Suitable for MIG/ARC/TIG welding. Performs gasless MIG welding. Ideal for mild steels and *stainless steel. *Using stainless steel welding wire.

• Multi-process MIG/ARC/TIG welder for greater flexibility: Duty cycle @ 40�C; 120A @ 15% (MIG) / 100A @ 15% (ARC/TIG). Performs gasless MIG welding for added versatility.

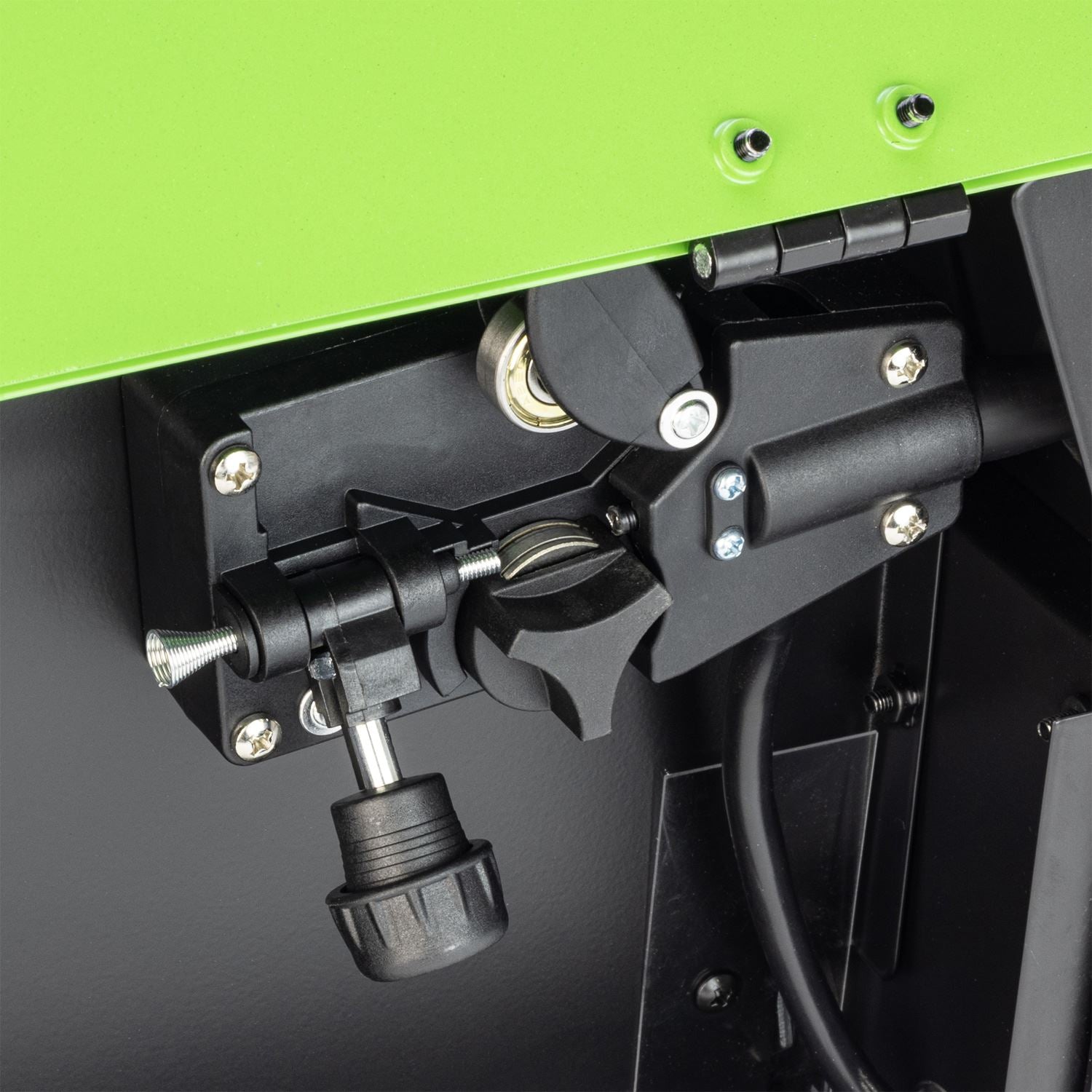

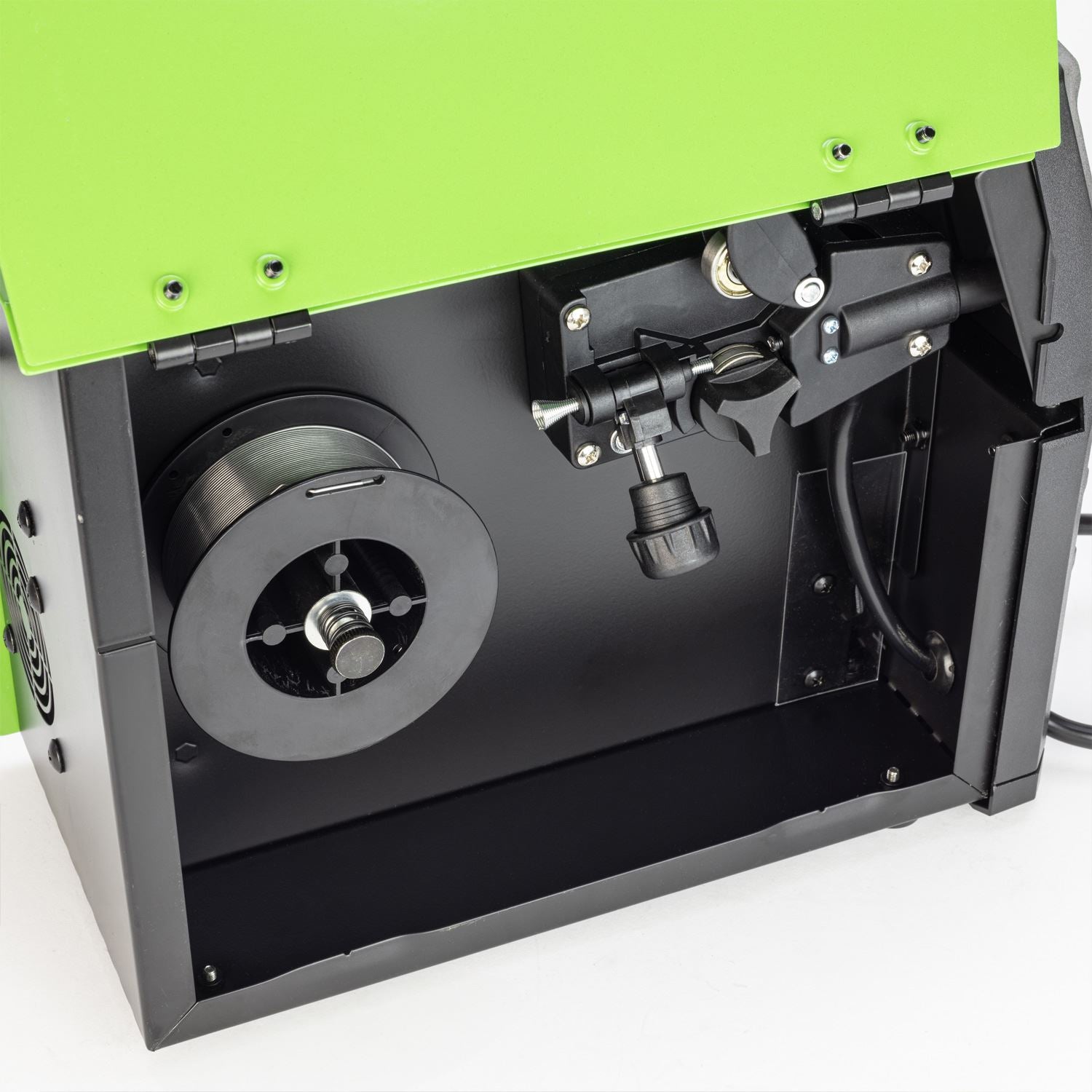

• Durable wire feeder ensures smooth and consistent flow of wire to MIG torch: This easy-to-use device includes tension adjustment to maintain optimal performance. Supplied with interchangeable feed rollers for solid and flux-cored wire. Compatible with 0.7kg welding wire spools.

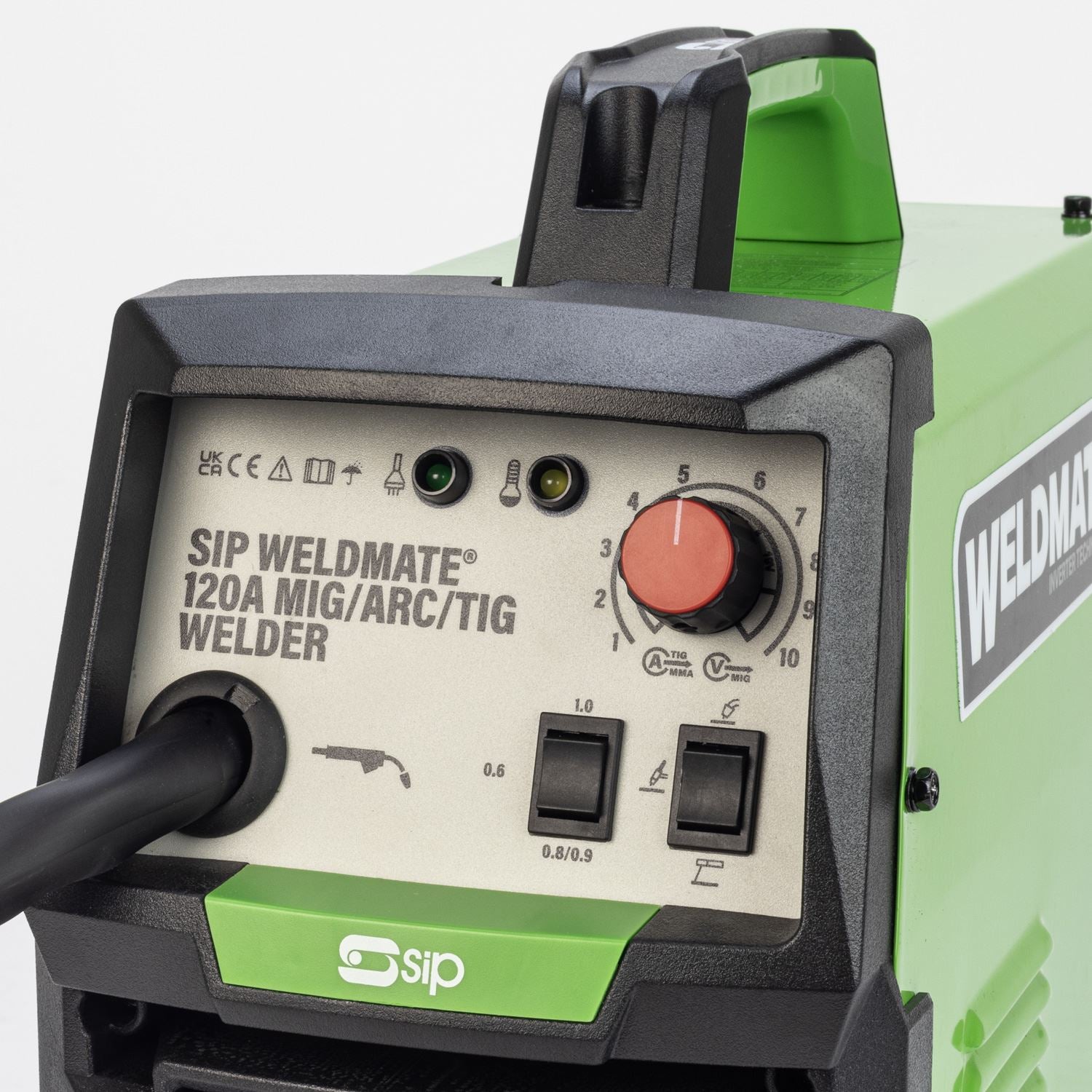

• Intuitive control panel to select between welding process and wire size: Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding.

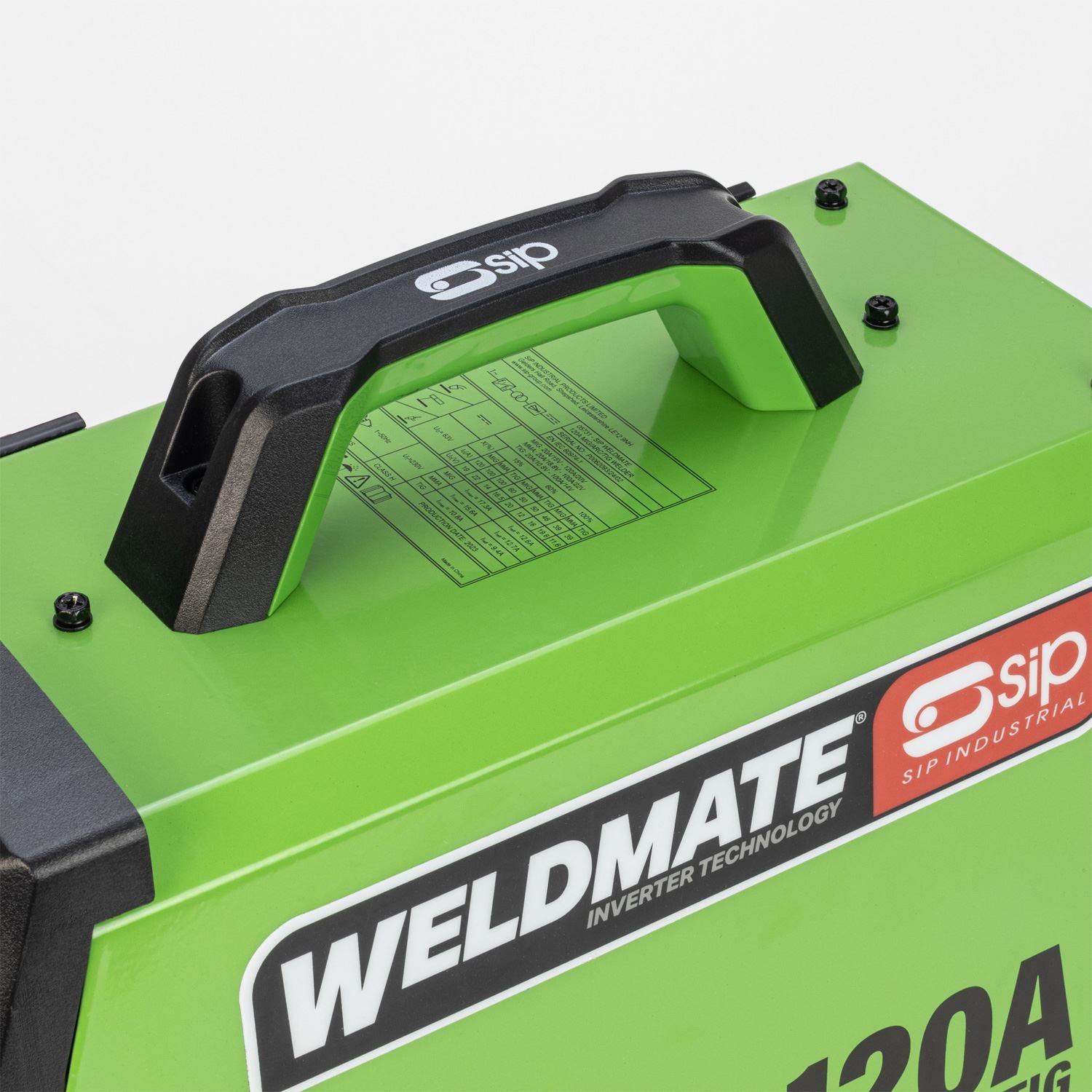

• Metal casing with heavy-duty carry handle for long life use: High-quality finish is resistant to work area damage and aids mobility.
• Compact and portable design for mobility around the work area: The compact unit is easy to move between locations using the fitted carry handle.

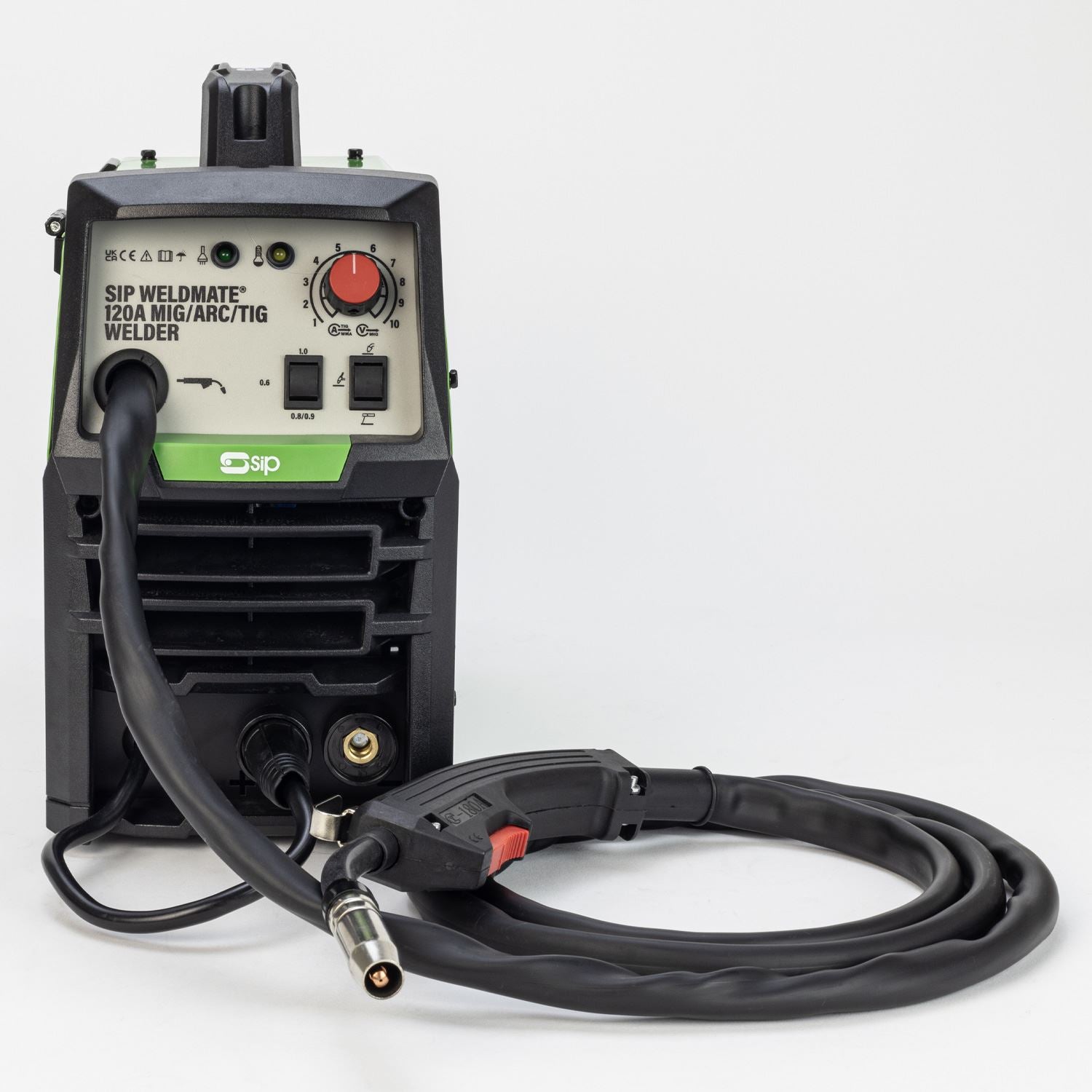

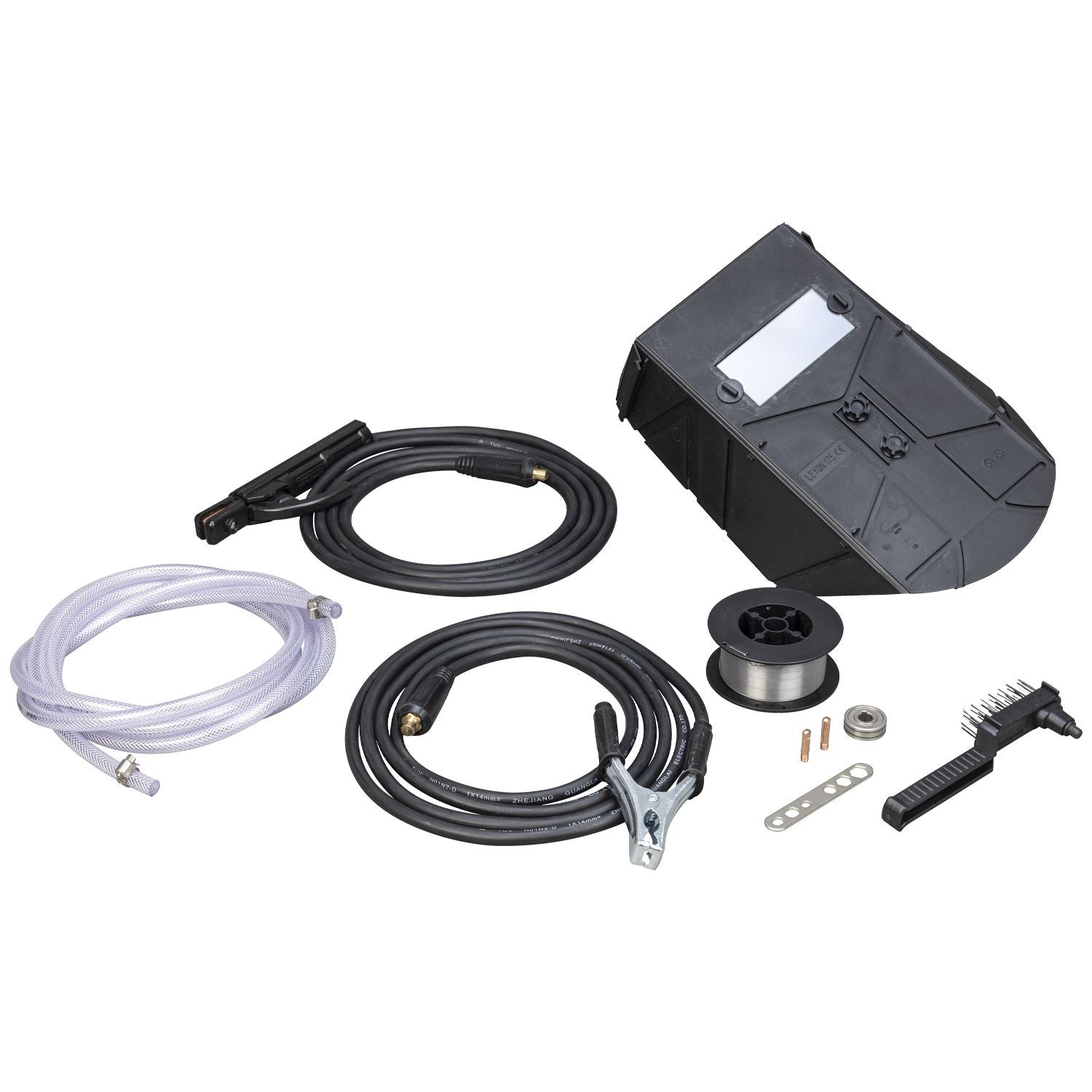

• Accessories included: Supplied with integrated 2mtr MIG torch, electrode lead, earth lead, gas hose with clamps, 0.7kg flux-cored wire reel, feed rollers, contact tips, chipping hammer/brush and face shield.
• Compatible with SIP Welding Cart for added mobility: Compatible with the 05714 SIP 3-Tier Welding Cart, suitable for gas cylinders up to 50kg.
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 05731
• Input Supply: 230v (13A)
• Output Voltage: 15v - 20v (MIG) / 18.8v - 22v (ARC) / 10.8v - 14v (TIG)
• Output Current: 20A - 120A (MIG) / 20A - 100A (ARC) / 20A - 100A (TIG)
• Duty Cycle @ 40�C: 120A @ 15% (MIG) / 100A @ 15% (ARC) / 100A @ 15% (TIG)
• Wire Diameter: ? 0.8mm - 0.9mm
• Wire Spool Size: 0.7kg
• Welding Material Thickness: 0.8mm - 5mm
• Protection / Insulation 21S / H
