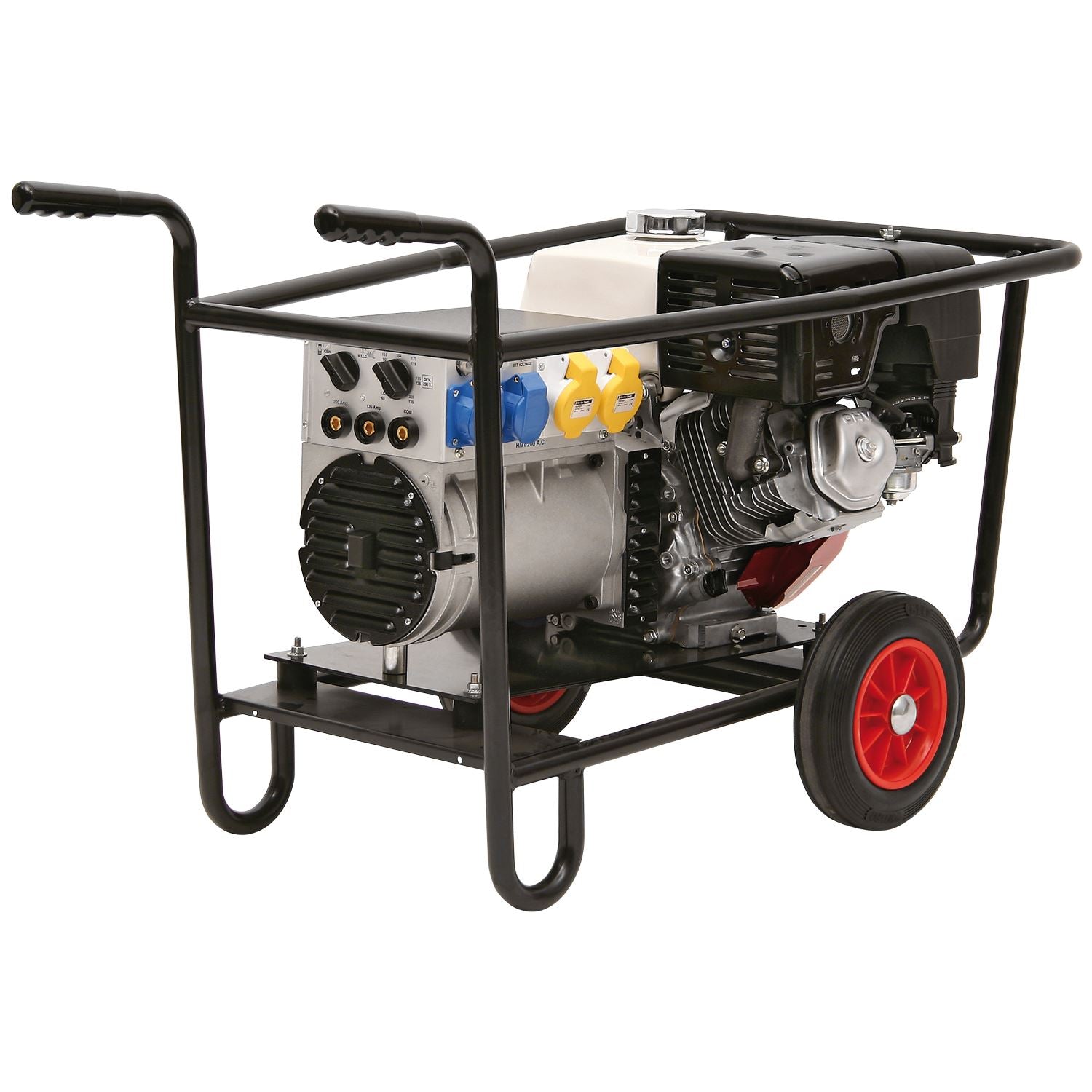

SIP P200W-AC HONDA� Professional Welder Generator

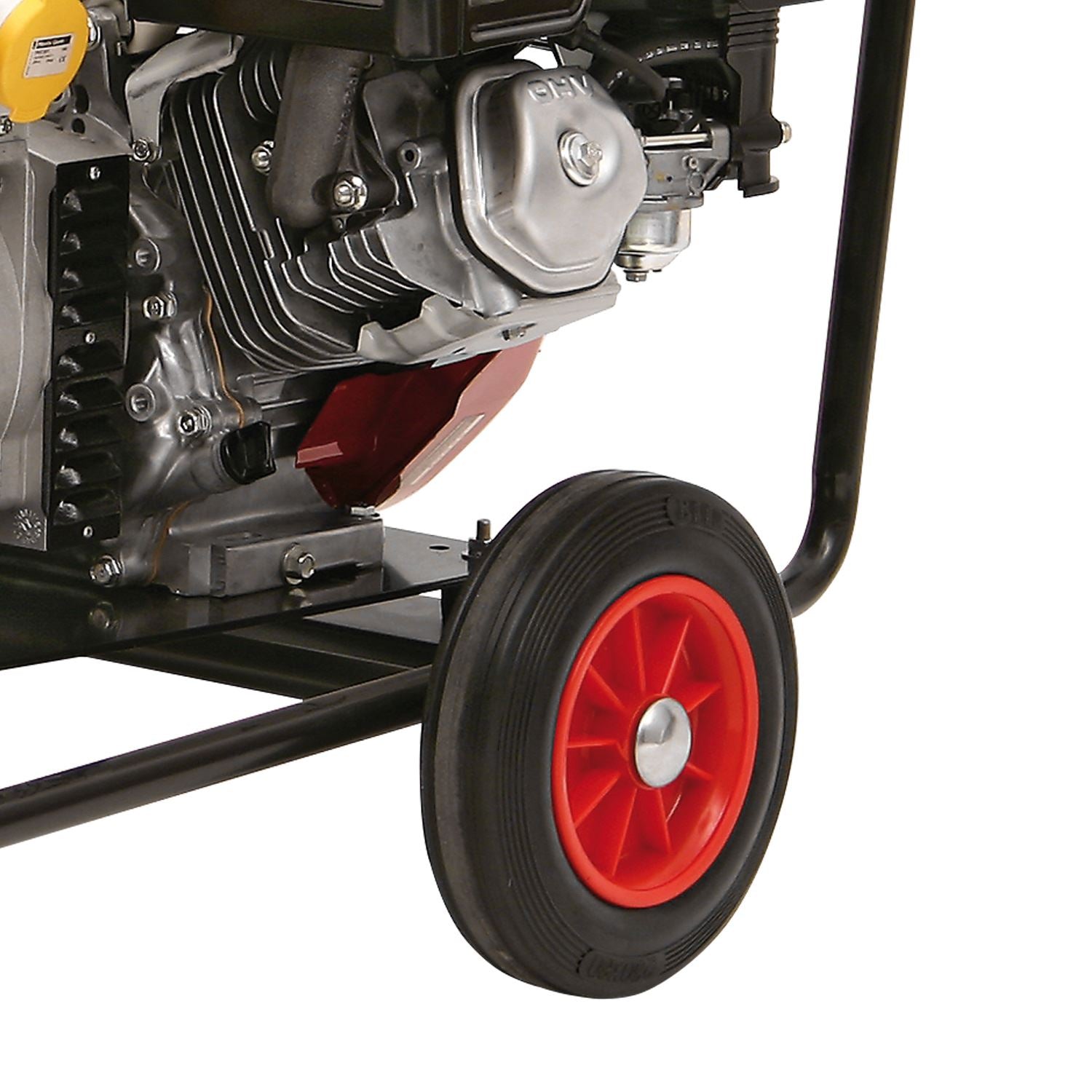

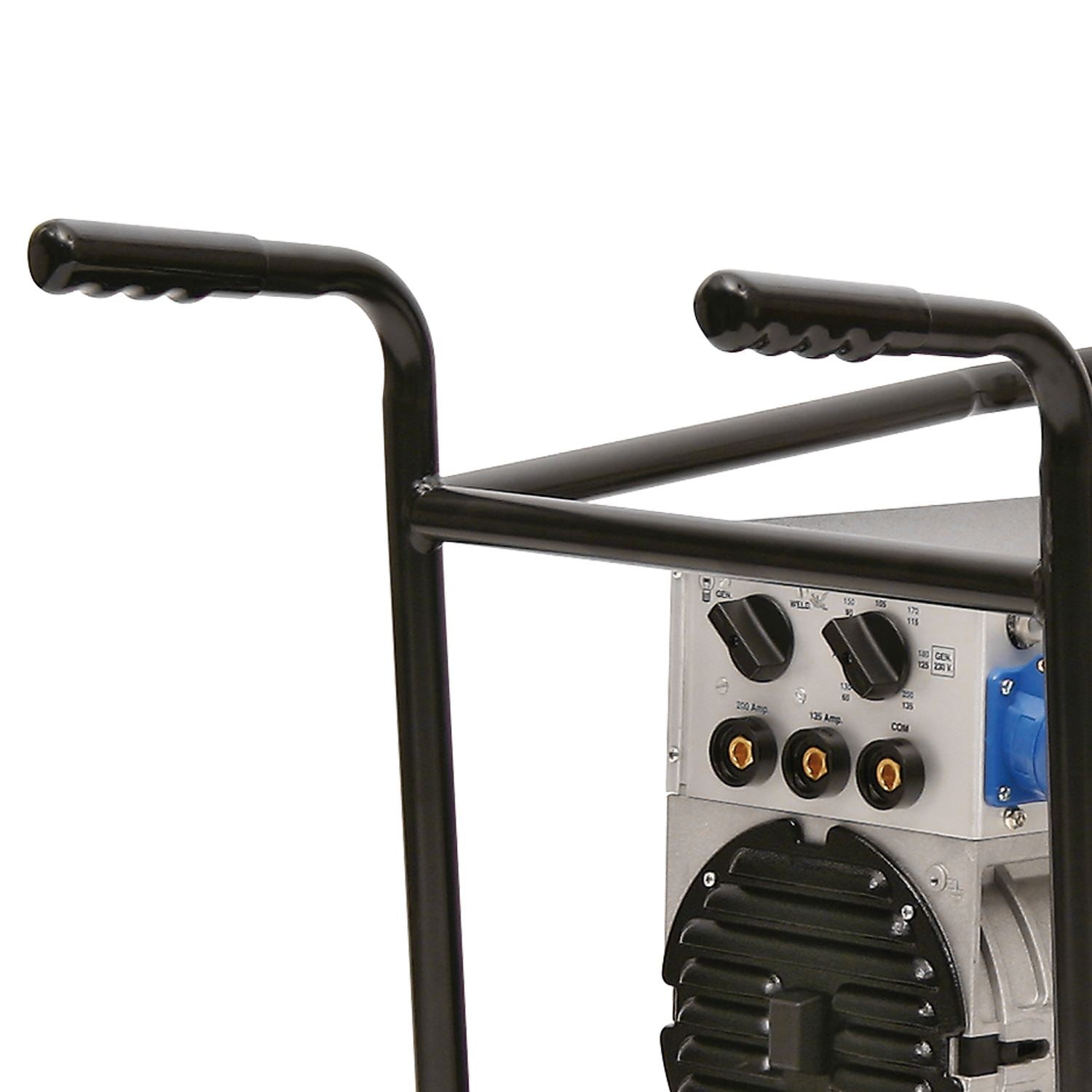

The SIP P200W-AC HONDA� Professional Welder Generator utilises a heavy-duty HONDA� GX390 engine that provides powerful performance in tandem with a robust wheel-mounted design and durable components suited for demanding environments.

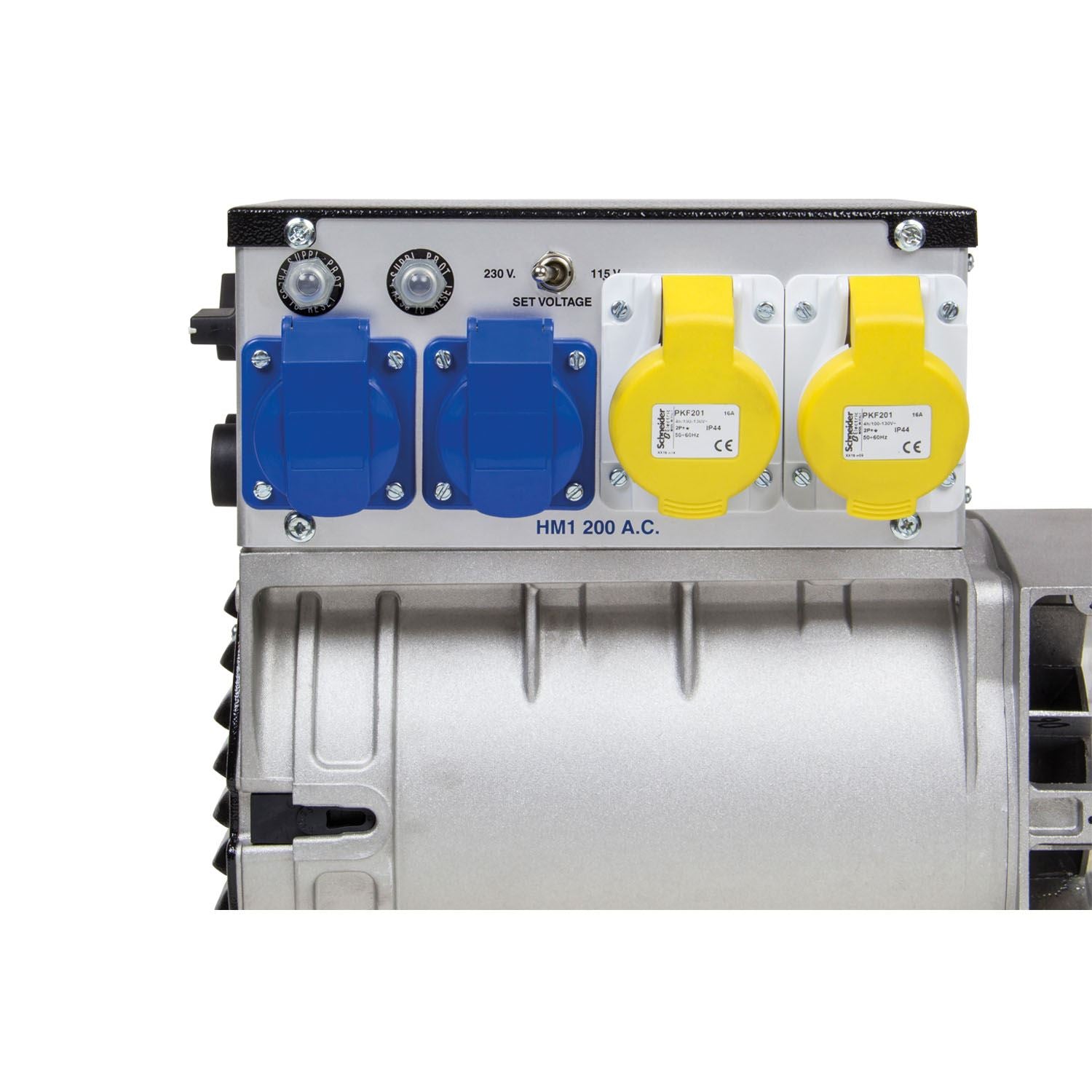

• 230v or 115v generator output supply

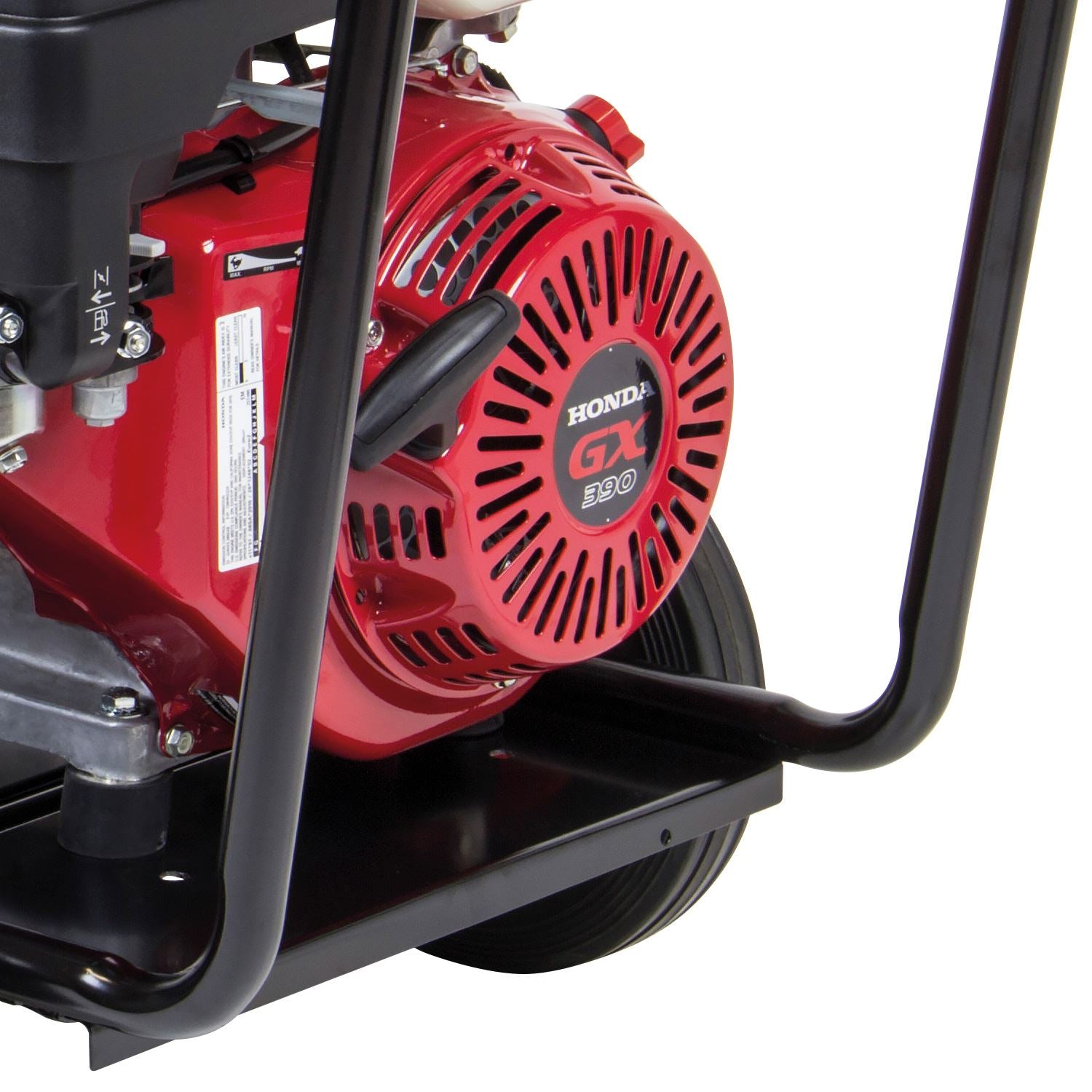

• Heavy-duty HONDA� GX390 OHV EURO V petrol engine
• 60A to 200A welding power; powerful AC output current
• High 7kVA generator output for increased performance
• 7.3ltr fuel tank capacity; 2.45hrs approx. runtime
• Splash-fed lubrication system for higher efficiency
• Heavy-duty cast iron cylinder liner for durability
• Quality inclined cylinder and counterbalance shaft
• Low oil shutdown helps to prevent engine damage

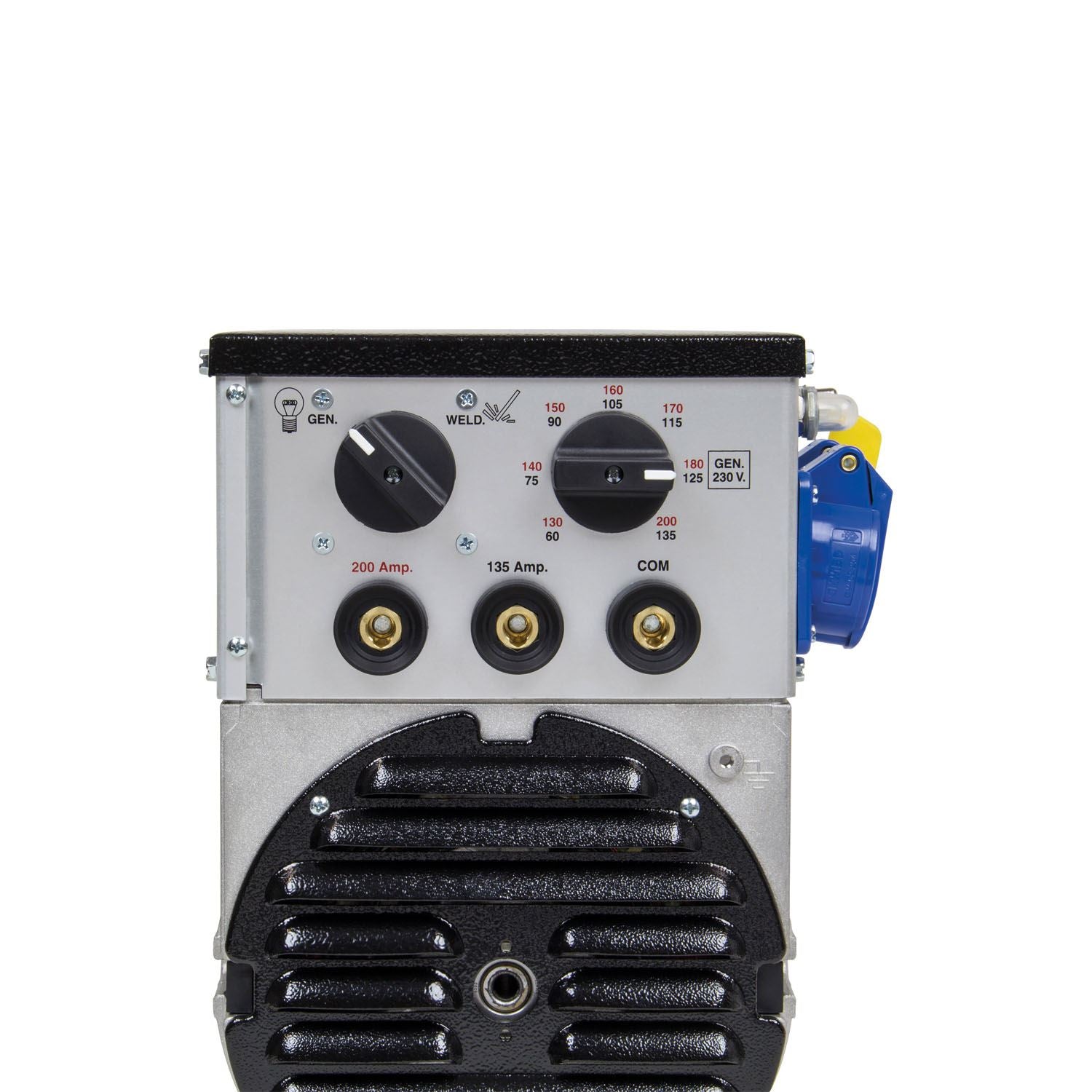

• Equipped with cable socket connections
• Assembled and tested by SIP in the UK
• SIP 2-Year Standard Silver Warranty
• HONDA� 3 Year Engine Warranty

Technical Specification

• ITEM NO. 25017
• Electric Starting: No
• Engine Type: HONDA GX390 389cc EURO V
• Output Current: 60A - 200A AC
• Output Supply: 230v / 115v
• Duty Cycle: 180A @ 60%
• Open Circuit Voltage: 45v (LO) / 60v (HI)
• Electrode Diameter: � 1.6mm - 5mm
• Welding Thickness: 1.5mm - 8mm
• Max. Rated Output: 7.00kVA
• Fuel Tank Capacity: 7.3ltr
• Approx. Runtime: 2.45hrs
• Protection Level: IP21
• Insulation Class: Class H
