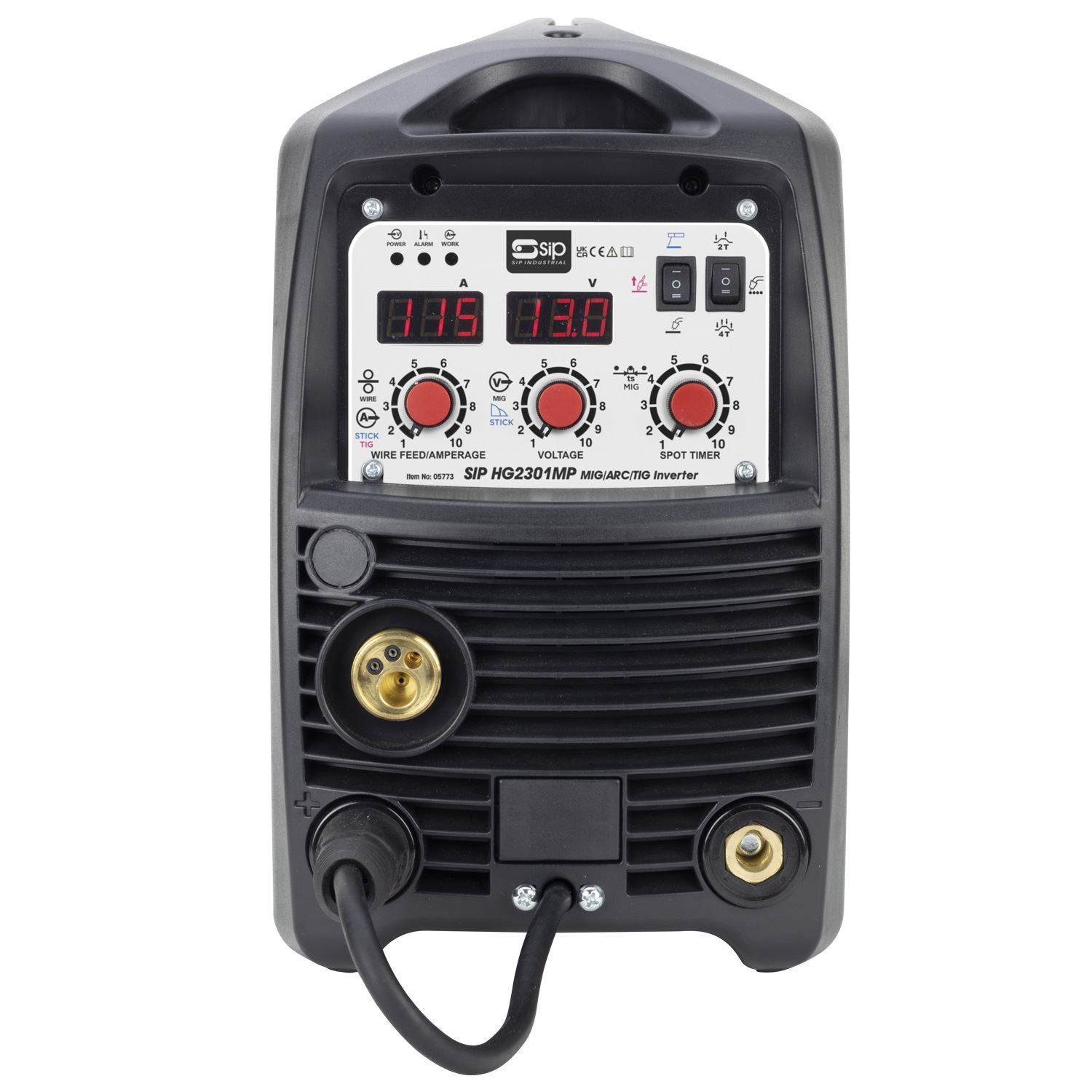

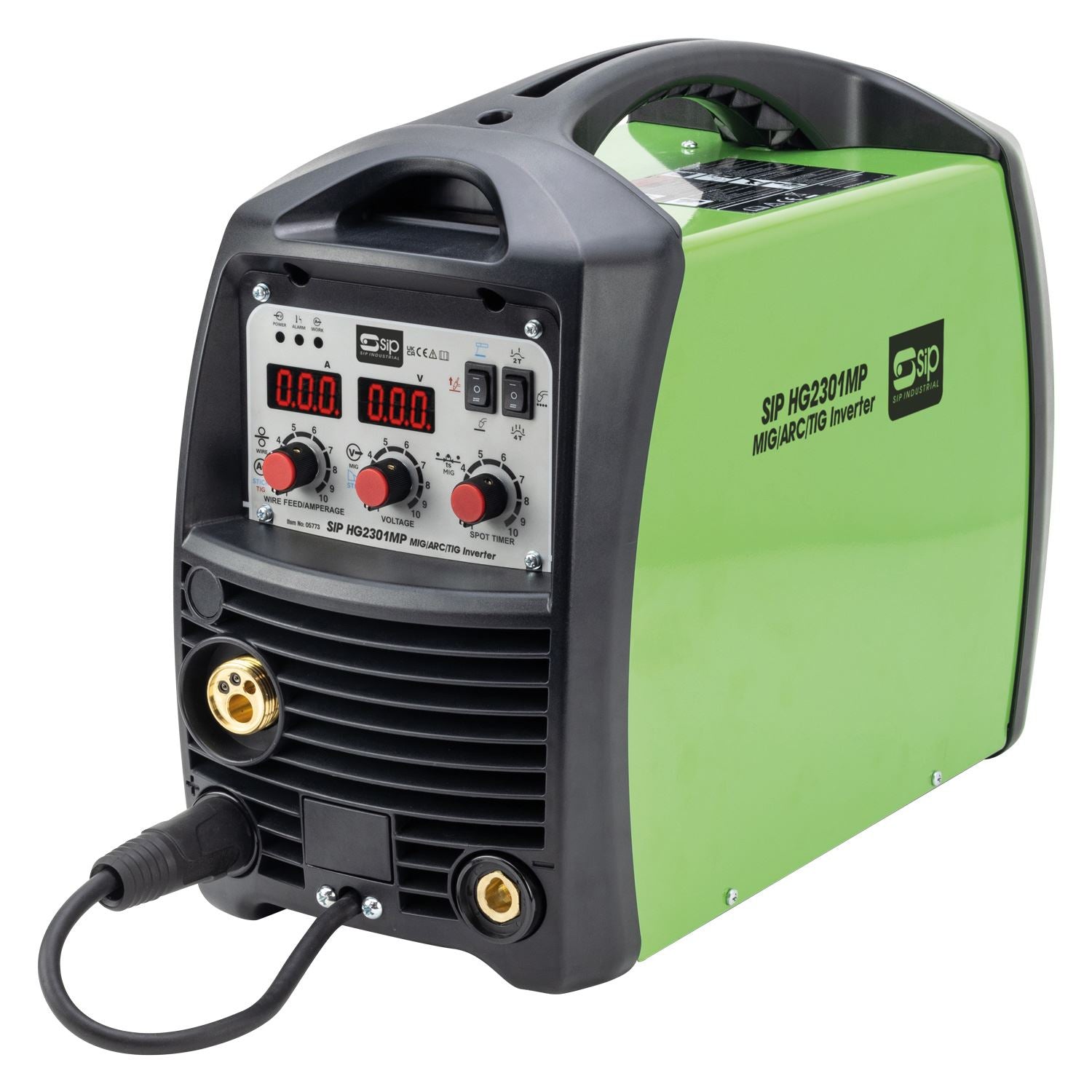

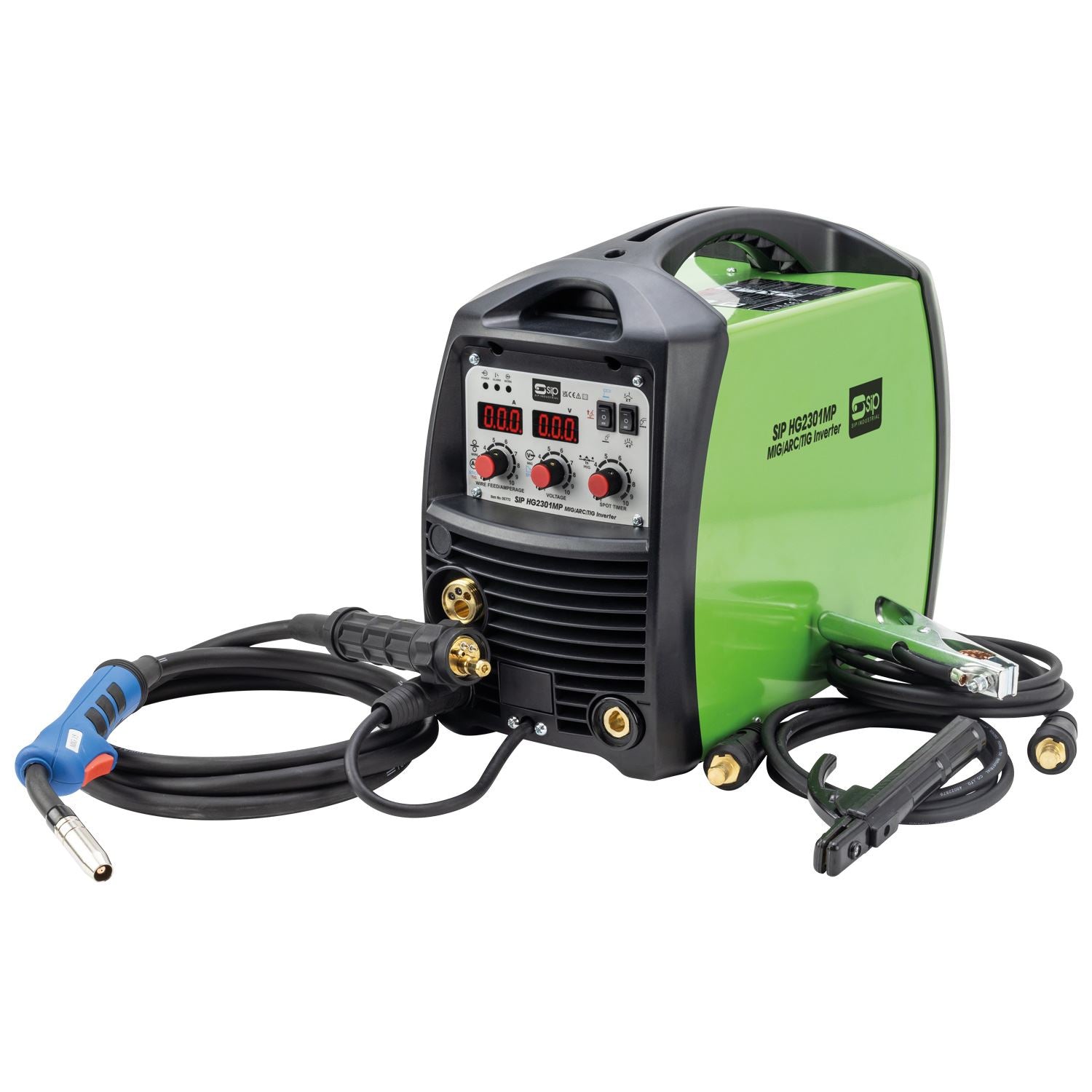

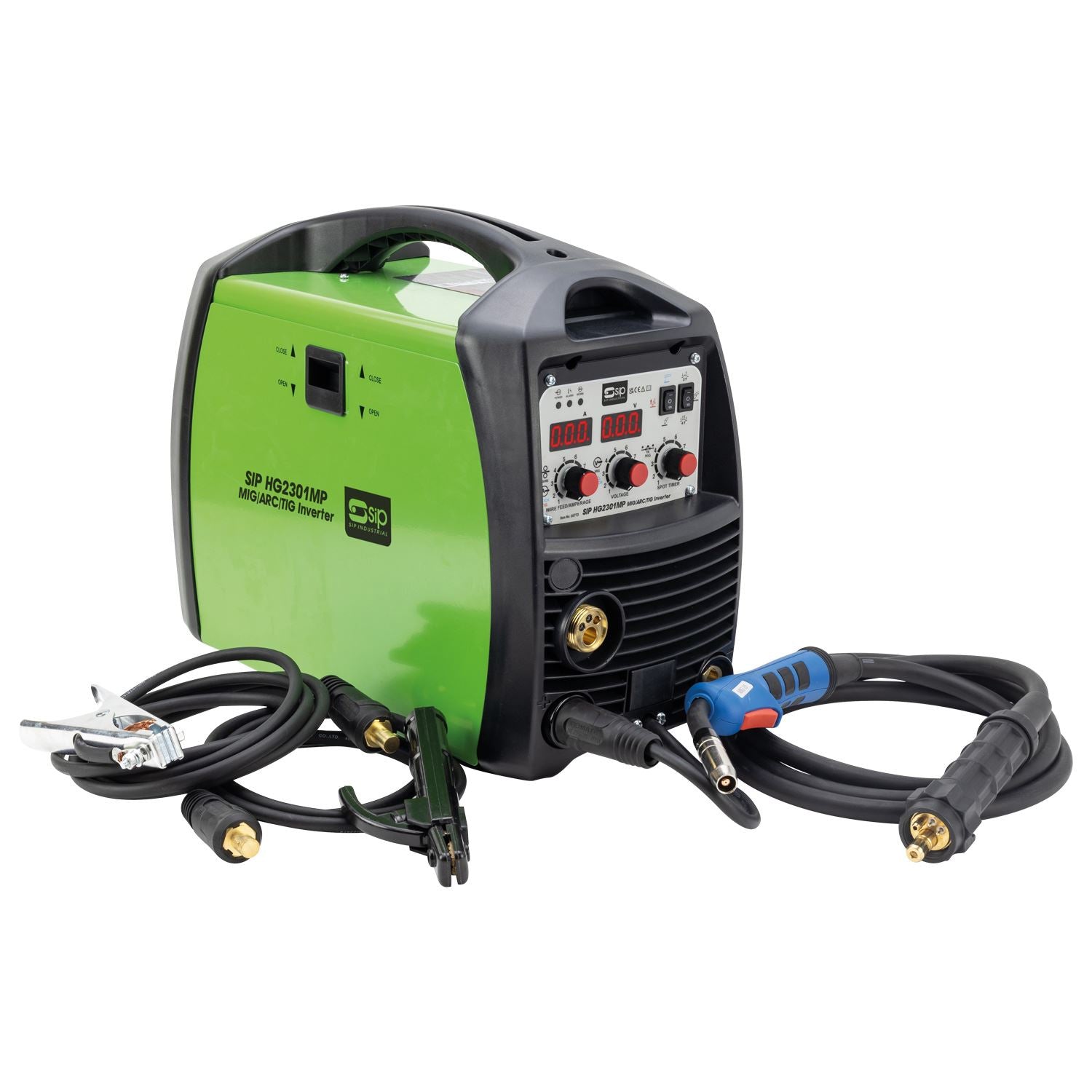

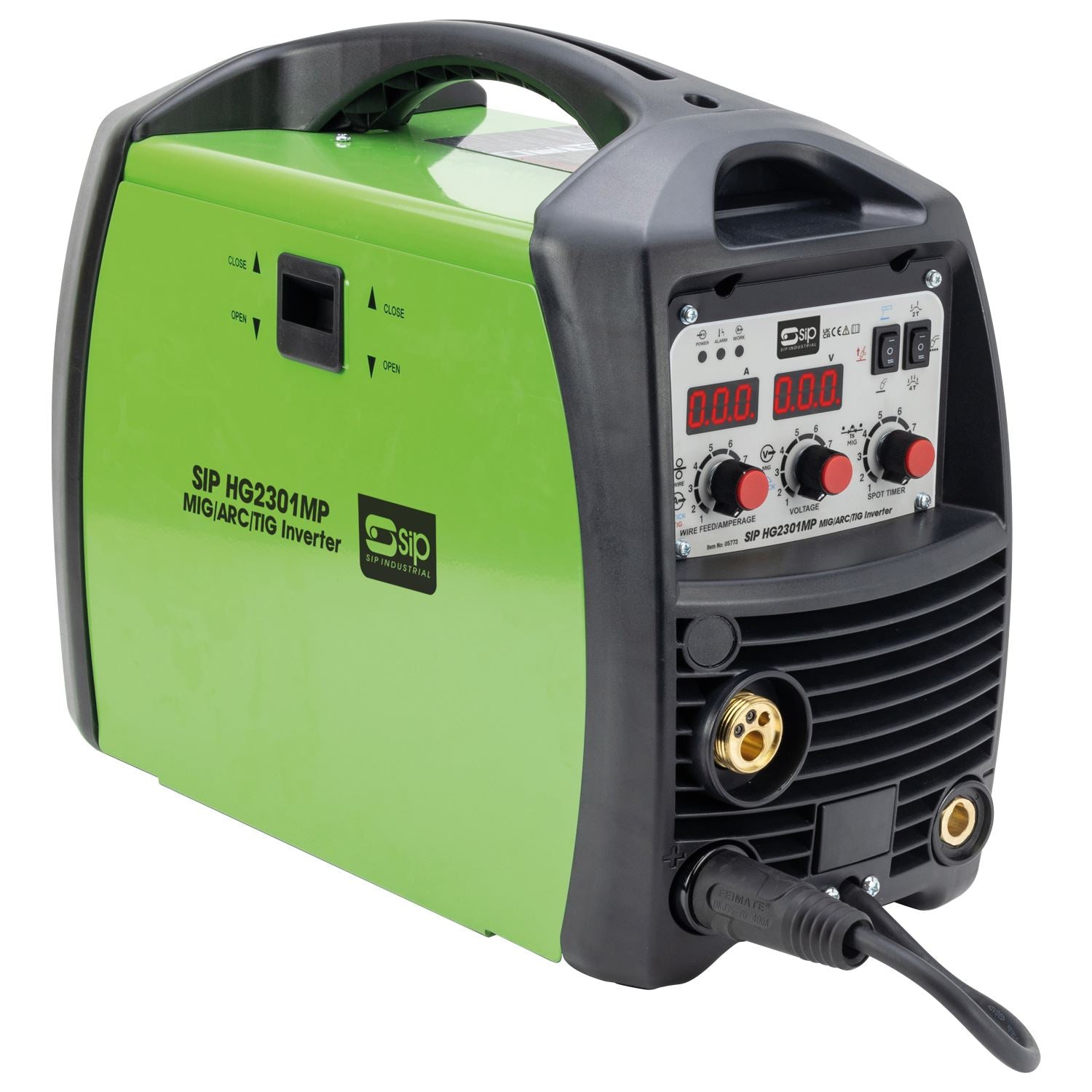

SIP Industrial HG2301MP MIG/TIG/ARC Inverter Welder

The SIP HG2301MP MIG/ARC/TIG Inverter Welder is a lightweight and portable unit designed for powerful performance in professional applications, utilising the latest IGBT inverter technology plus infinitely variable output settings to suit all requirements.

• 3-in-1 inverter; MIG, ARC and TIG welding processes
• Infinitely variable output settings for high versatility
• Lightweight and compact design for simple portability
• High performance in both Gas and Gasless MIG modes
• Latest IGBT inverter technology platform

Technical Specification

• ITEM NO. 05773
• Input Supply: 230v (16A)
• Output Current: 30A - 200A (MIG) / 30A - 170A (ARC) / 20A - 200A (TIG)
• Output Voltage: 15.5v - 24v (MIG) / 21.2v - 26.8v (ARC) / 10.8v - 18v (TIG)
• Voltage Steps: Infinitely variable
• Duty Cycle: 200A @ 50% (MIG) / 200A @ 50% (ARC) / 200A @ 50% (TIG)
• Electrode Diameter: � 1.6mm - 4mm
• Wire Diameter: � 0.6mm - 1mm
• Wire Spool Size: 0.7kg - 5kg
• Protection Level: IP21S
• Insulation Class: Class H
