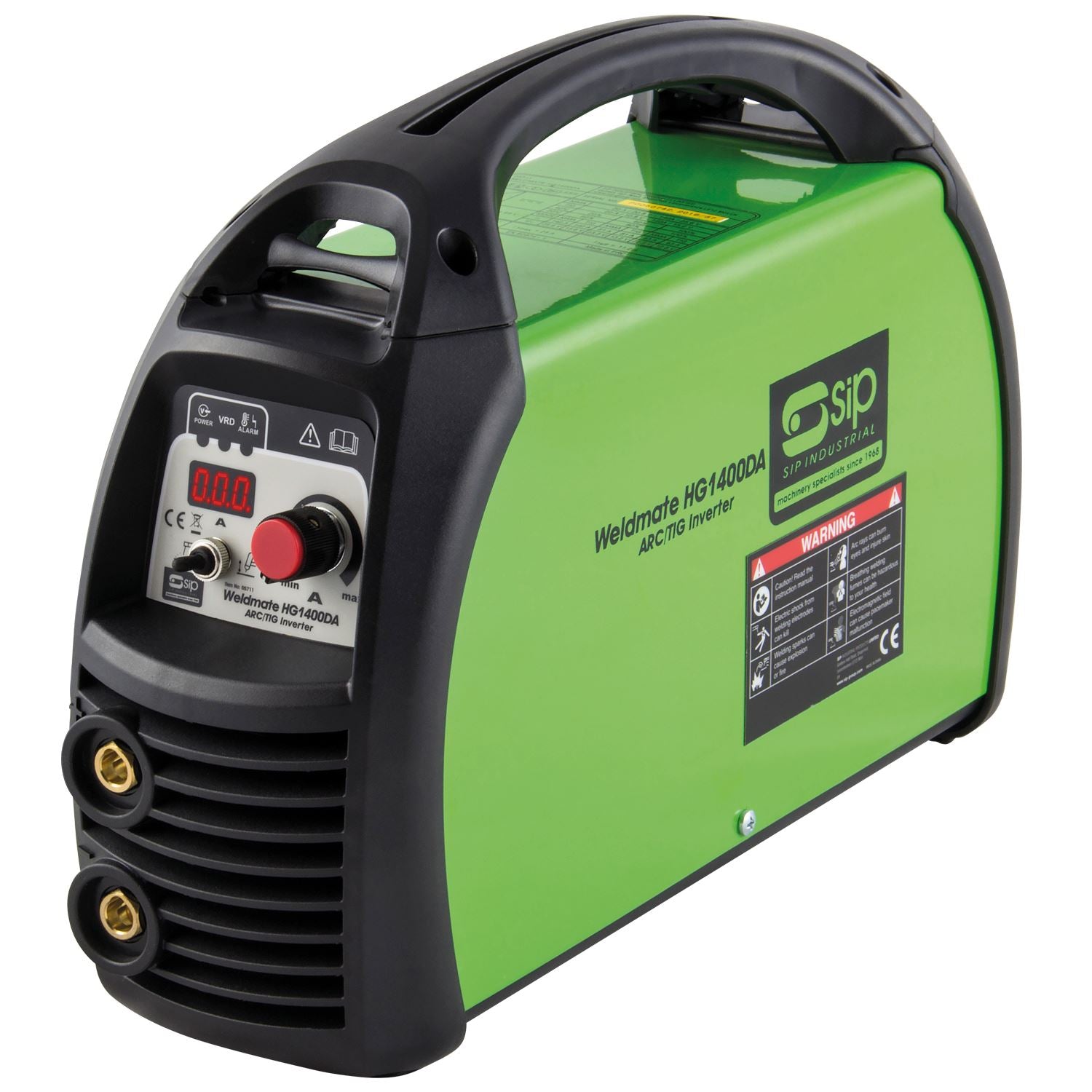

SIP Industrial HG1401DA ARC Inverter Welder

The SIP HG1401DA ARC Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

• 20A to 140A output current; 140A @ 60% duty cycle
• Lift-TIG start function and anti-stick circuitry
• Fitted with a reliable Voltage Reduction Device (VRD)
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety

Technical Specification

• ITEM NO. 05711
• Input Supply: 230v (13A)
• Output Current: 20A - 140A
• Output Voltage: 20.8v - 25.6v (ARC) / 10.8v - 15.6v (TIG)
• Duty Cycle: 20�C: 140A @ 60% / 40�C: 140A @ 20%
• Electrode Diameter: � 1.6mm - 3.2mm
• Welding Thickness: 1.5mm - 7mm
• Open Circuit Voltage: 69v
• Power Factor: 0.75
• Efficiency Level: 85%
• Protection Level: IP21S
• Insulation Class: Class H
