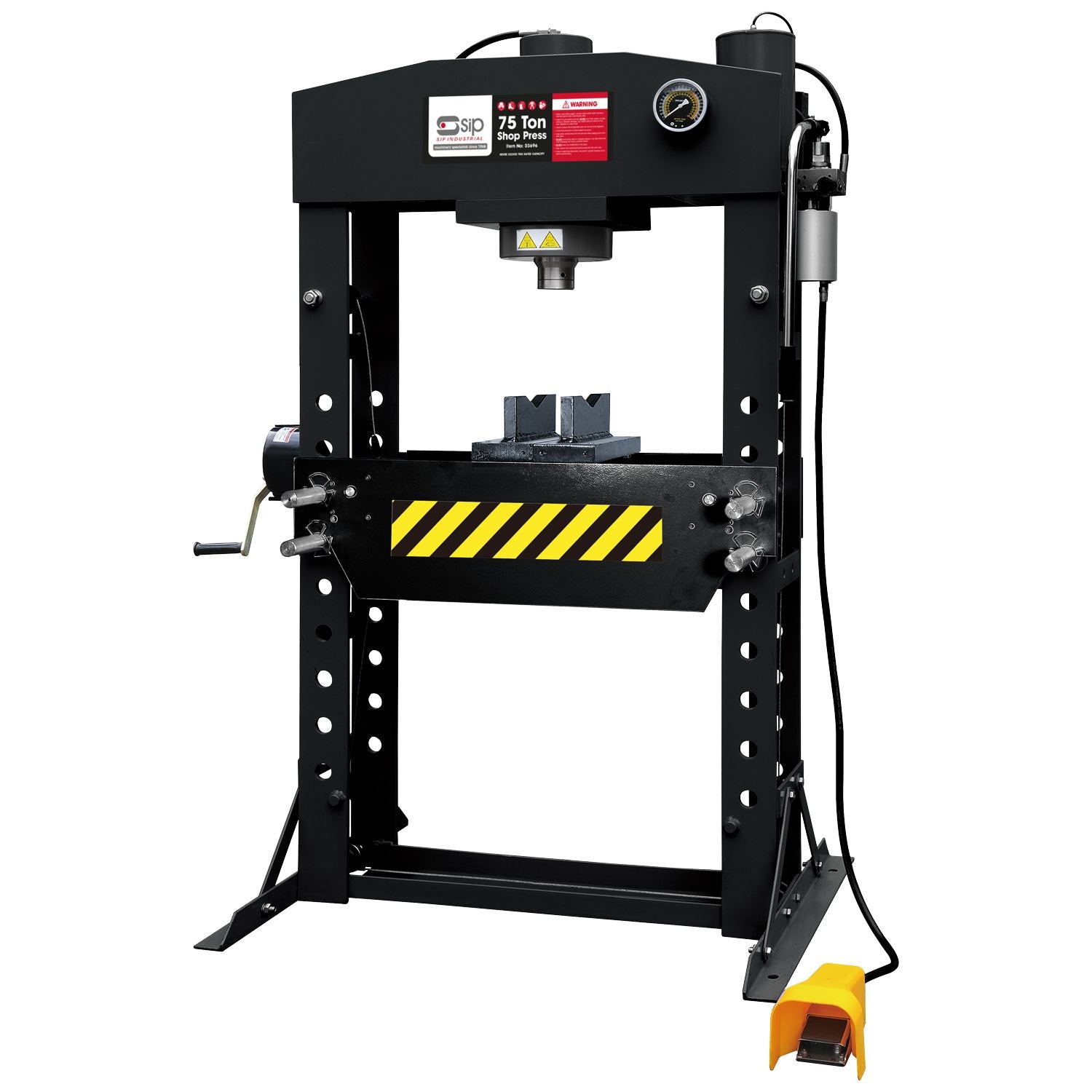

SIP Industrial 75 TON Shop Floor Press

The SIP 75 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.

A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.

• 160mm to 880mm work range and a 250mm ram stroke
• Ideal for bending, bonding, straightening applications
• Bearing, wrist pin, universal joint or pulley removal
• Fully adjustable workbed for improved versatility
• Heavy-duty steel frame for increased durability
• Integrated Glycerine-filled manometer

Technical Specification

• ITEM NO. 03696
• Press Capacity: 75 TON
• Press Type: FLOOR
• Press Operation: Pneumatic
• Working Range: 160mm - 880mm
• Press Height: 1940mm
• Press Width: 1150mm
• Press Depth: 800mm
• Ram Stroke: 250mm
• Bed Width: 800mm
