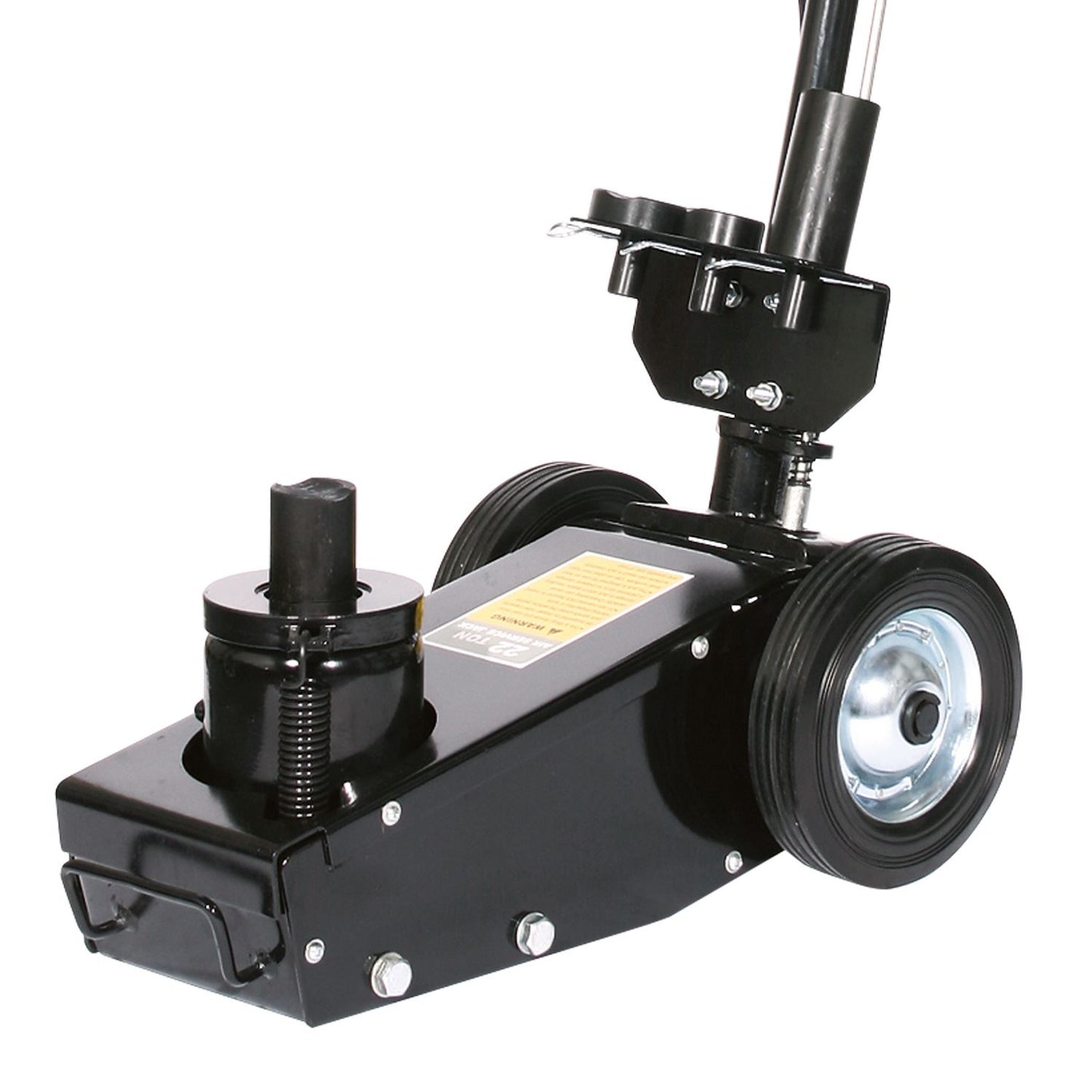

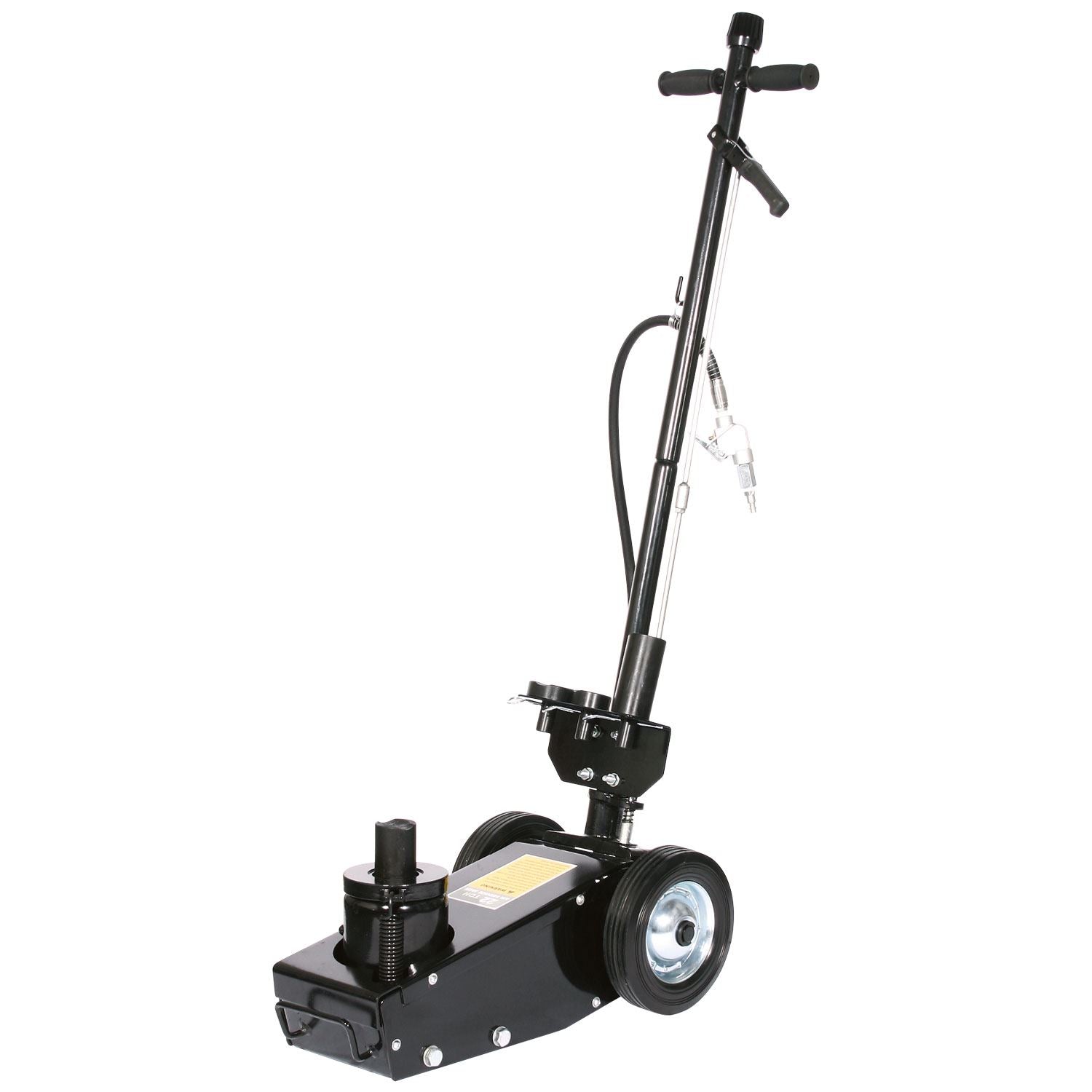

SIP Industrial 22 TON Air Floor Jack

The SIP 22 TON Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery. A low-profile design ensures it can be easily positioned under vehicles with lower clearances.

This compressed air-controlled jack is ideal for demanding applications in professional garages and workshops handling a variety of larger and heavier vehicles.

• 230mm to 555mm adjustable lifting height
• 115mm screw extension for added versatility
• Manufactured from heavy-duty and durable steel
• Low-profile design for easier under-vehicle access
• Large non-marking rubber wheels for added durability
• Built-in release knob and integrated handle lock

Technical Specification

• ITEM NO. 03643
• Weight Capacity: 22 TON
• Min. Lifting Height: 230mm
• Max. Lifting Height: 555mm
• Ram Stroke: 120mm
• Screw Extension: 115mm
• Working Pressure: 102psi (7bar) - 145psi (10bar)
• Av. Air Consumption: 9.50CFM (269ltr/min)
• Adaptor Size: � 110mm x 50mm / � 50mm x 50mm / � 20mm x 50mm / � 20mm x 70mm
