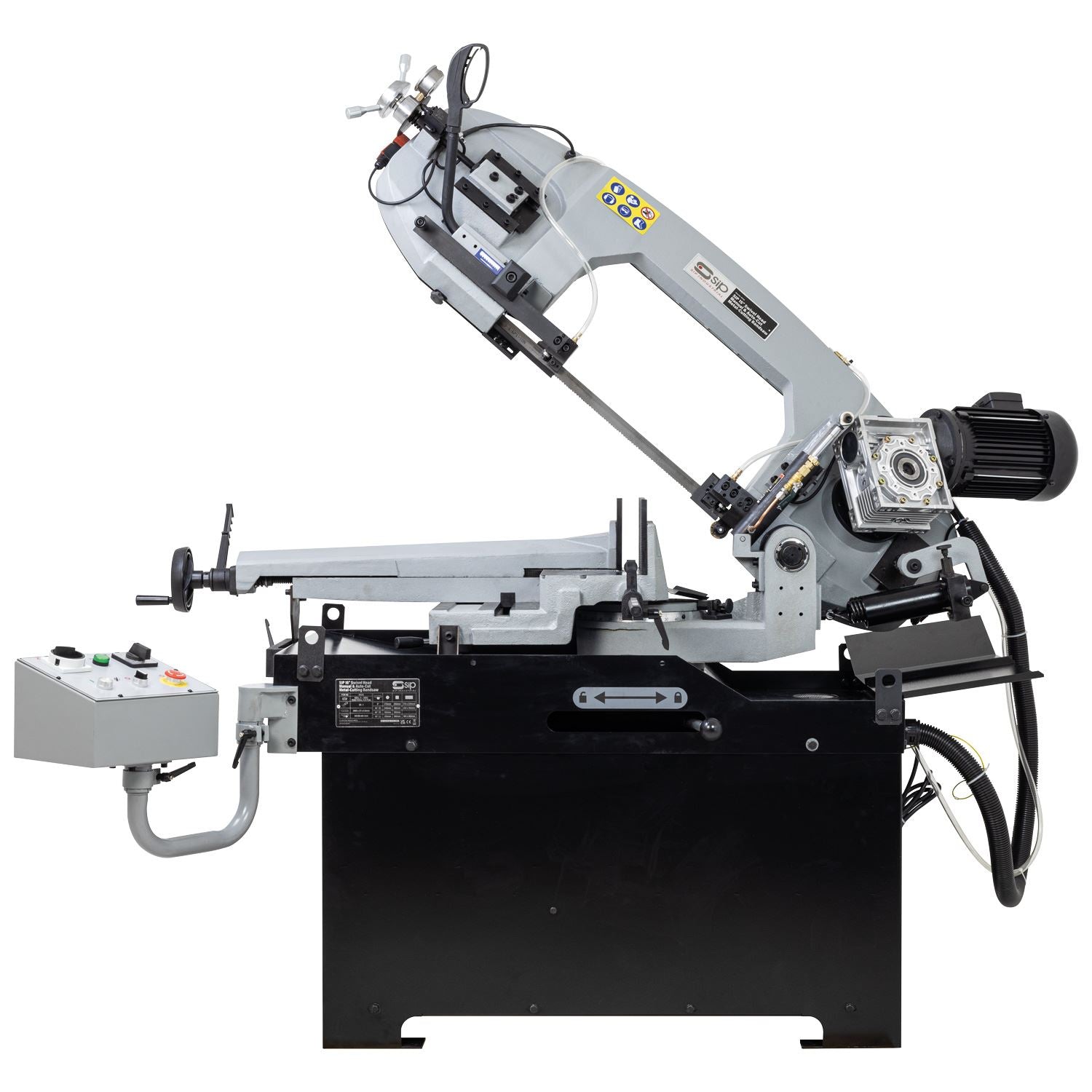

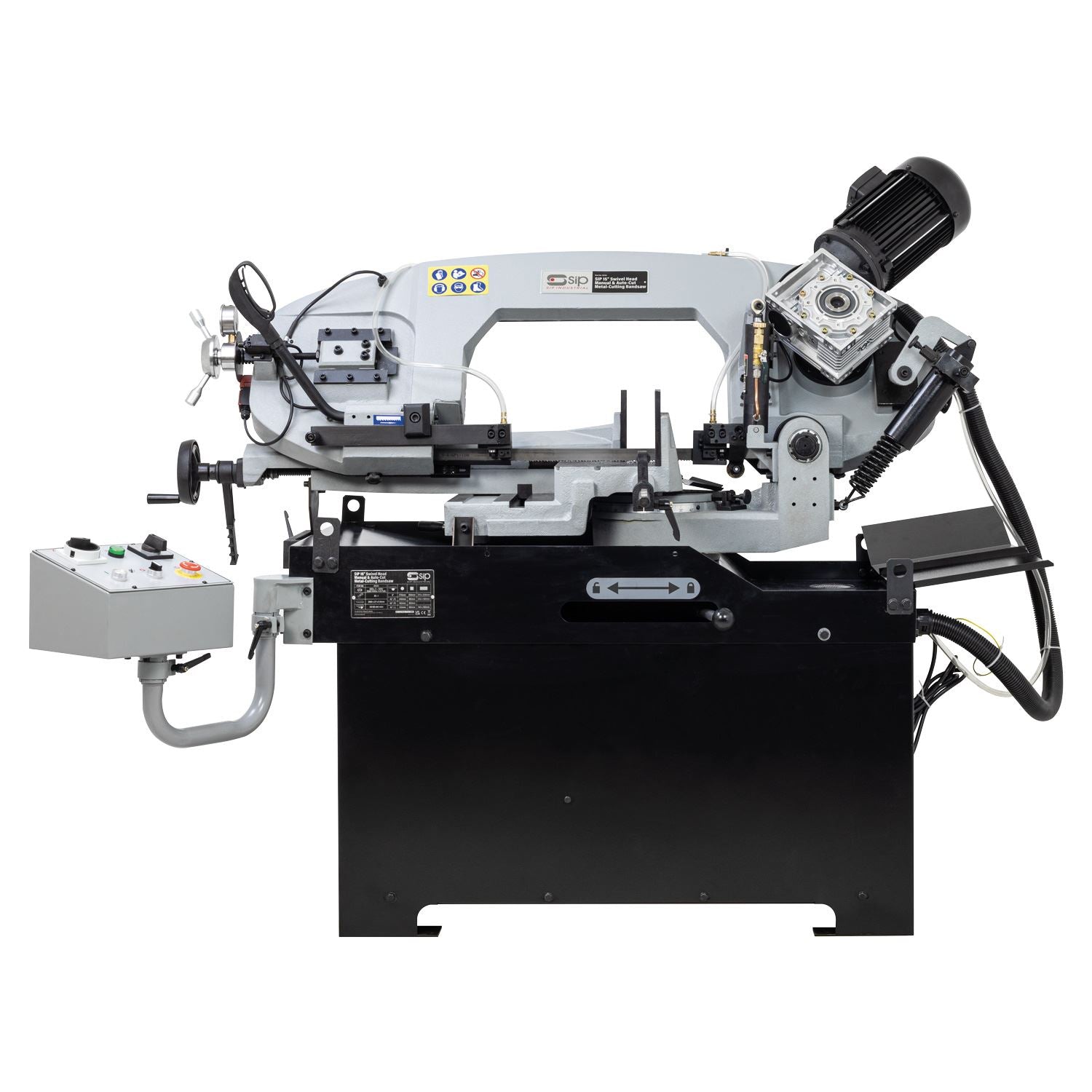

SIP Industrial 15" Swivel Head Manual & Auto-Cut Metal Bandsaw

The SIP 15" Swivel Head Manual & Auto-Cut Metal Bandsaw is a powerful and accurate auto-cutting bandsaw machine ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

• Dual swivel head function
• Two-speed motor (1.1kW - 1.5kW)
• Direct drive motor gearbox transmission
• Semi-automatic and manual cut-down functions

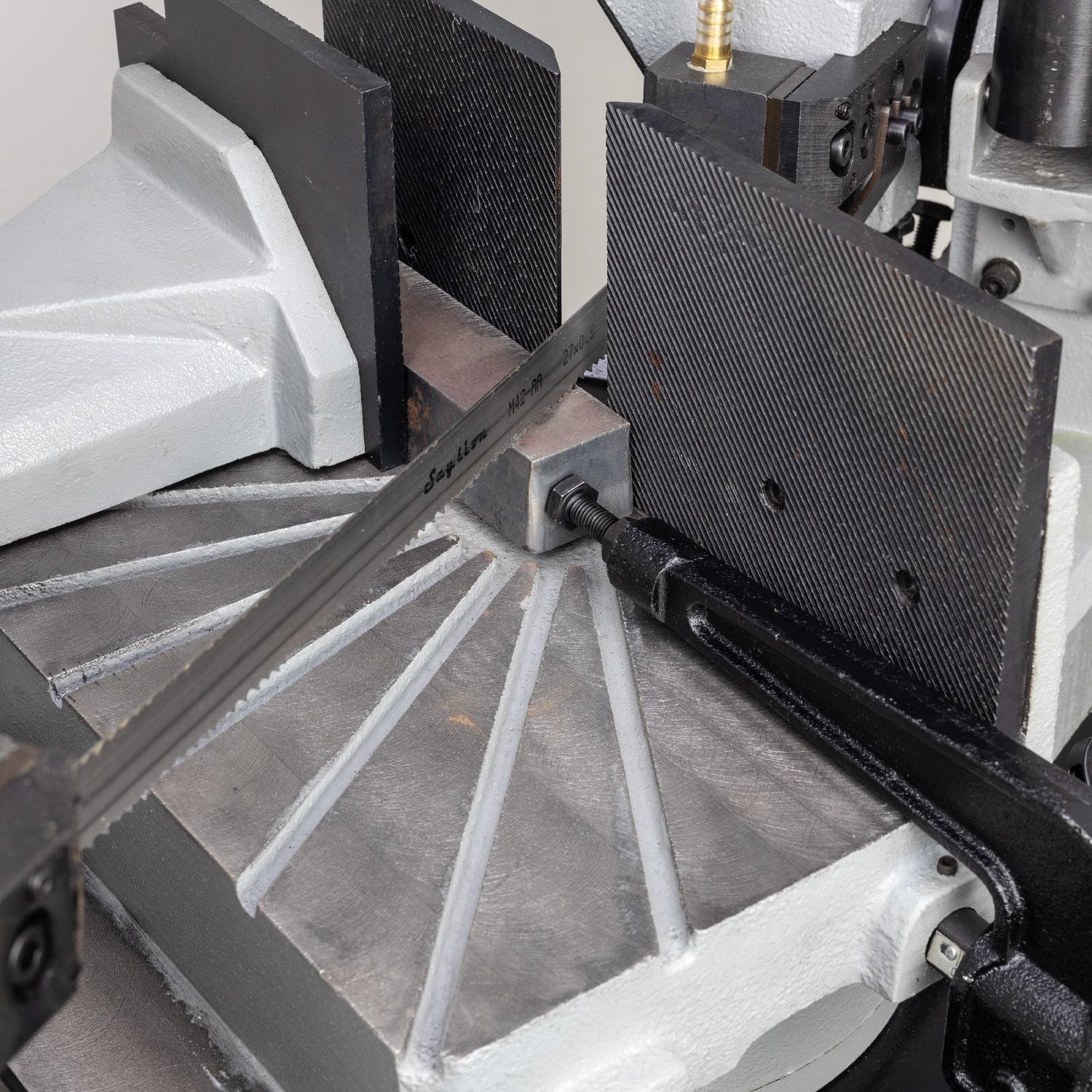

• Heavy-duty cast iron swivel bow head
• Adjustable cast iron vice
• Enhanced safety features

Technical Specification

• ITEM NO. 01530
• Input Supply: 400v 3-PHASE
• Motor Power: 1.5kW (2hp)
• Transmission: 2-Speed Direct Drive Gearbox
• Blade Speed Range: 34mtr/min / 68mtr/min
• Blade Size: 3160mm x 27mm x 0.9mm
• Coolant System: Yes
• Angle Range: 45�, 30�, 15� (left), 0�, 15�, 30�, 45�, 60� (right)
• Cutting Capacity @ 0�: 270mm (circle) / 260mm (square) / 220mm x 370mm (rectangle)
• Cutting Capacity @ 45�: 240mm (circle) / 180mm (square) / 160mm x 240mm (rectangle)
• Cutting Capacity @ 60�: 160mm (circle) / 100mm (square) / N/A (rectangle)
• Cutting Capacity @ 45� (L): 210mm (circle) / 180mm (square) / 150mm x 180mm (rectangle)
