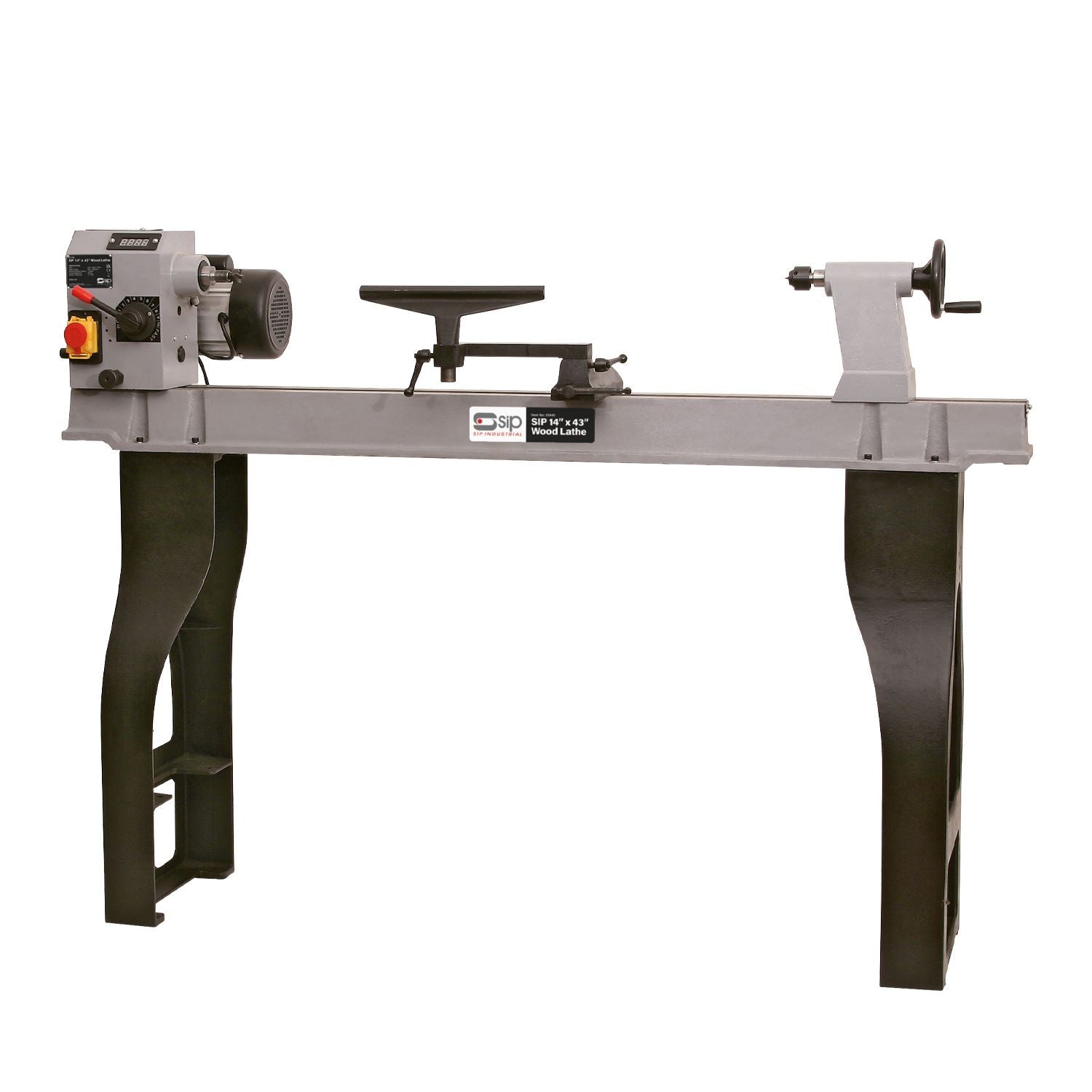

SIP Industrial 14" x 43" Swivel Head Wood Lathe

The SIP 14" x 43" Swivel Head Wood Lathe is ideal for those seeking a robust, adaptable lathe with heavy-duty stability. This crucial woodworking machine tools accurately shapes, turns, drills and sand workpieces to the desired specification.

For added functionality, the headstock swivels 360� with four locking positions to allow outboard turning of larger wood materials, whilst heavy-duty cast iron legs maximise stability. The lathe bed, headstock (MT1) and tailstock (MT2) are also manufactured from heavy-duty cast iron. A hollow tailstock is fitted to allow long hole boring.

Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.

• 3/4" x 16TPI spindle thread size
• 350mm max. turning diameter (1100mm between centres)
• Heavy-duty cast iron legs
• Heavy-duty cast iron lathe bed
• Digital speedometer display up to 2000rpm
• 10 setting easy-change speed handle

Technical Specification

• ITEM NO. 01940
• Input Supply: 230v (13A)
• Motor Power: 750w (1hp)
• Speed Range: 500rpm - 2000rpm
• Distance Between Centres: 1100mm (43")
• Turning Capacity: 350mm (14")
• Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
• Drive Spur Size: 1 Morse Taper
• Tailstock Rotating Centre Size: 2 Morse Taper
• Noise Level: 68dB(A)
