SIP Industrial 1 TONNE Gantry Crane Beam Trolley

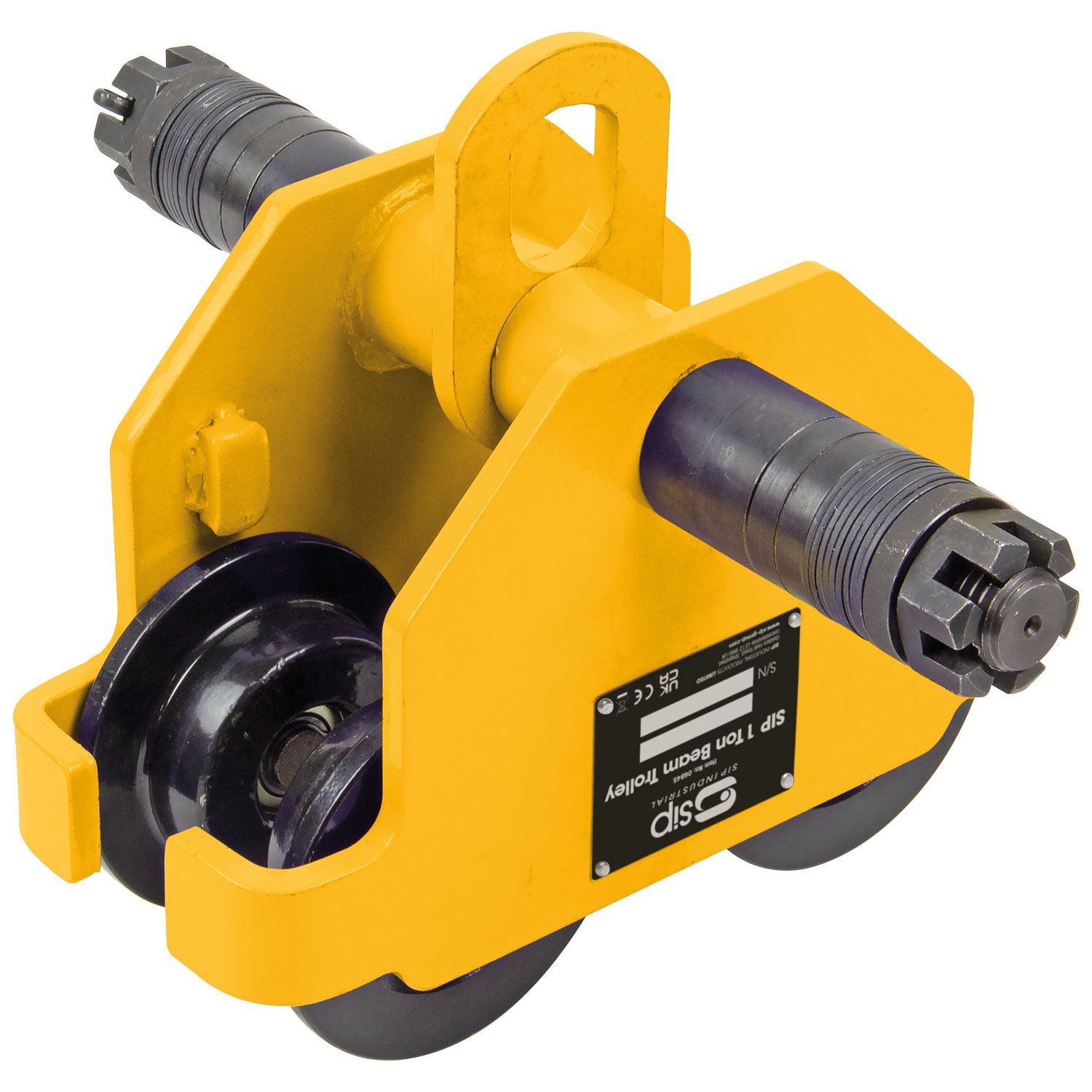

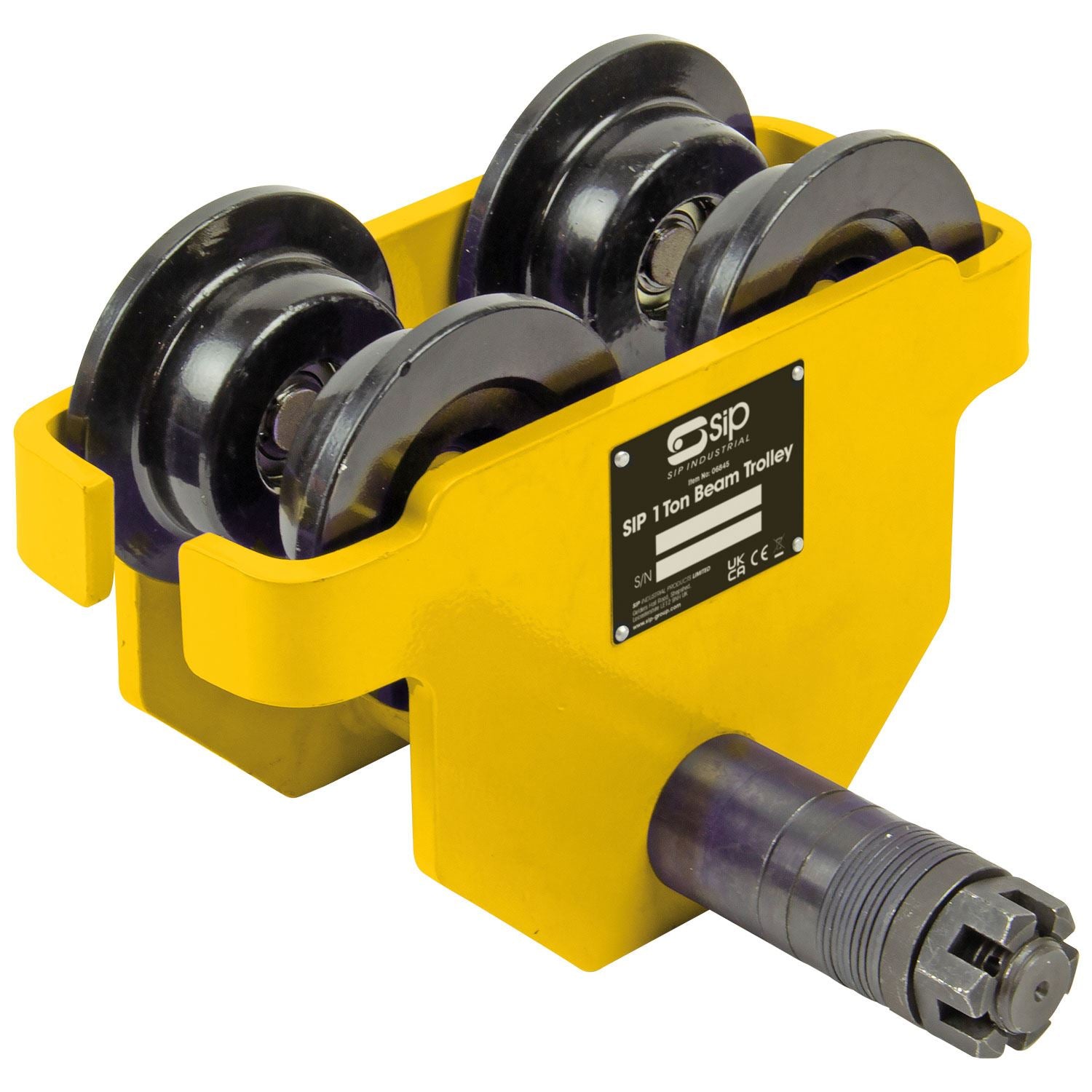

The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push/pull trolley with 4 bearing-mounted wheels and integrated wheel guards perfect for when two or more trolleys are in use on the same gantry crane frame.

Suitable for 'I' sections and RSJ beam types, and particularly complements the SIP 1 TONNE Gantry Crane Frame and SIP 1 TONNE Gantry Crane Chain Block.

• Heavy-duty push/pull crane beam trolley
• Suitable for all 'I' sections and RSJ beam types
• Fitted with wheel guards for added protection
• 4 heavy-duty bearing-mounted wheels

Technical Specification

• ITEM NO. 03851
• Suitable For: 03849
• Safe Working Load: 1 TONNE
• Min. 'I' Beam Width: 64mm
• Max. 'I' Beam Width: 140mm
• Min. Standard Beam: 125mm x 75mm x 5.5mm
• Max. Standard Beam: 250mm x 125mm x 7.5mm
• Designed For: 'I' sections / RSJ beams
