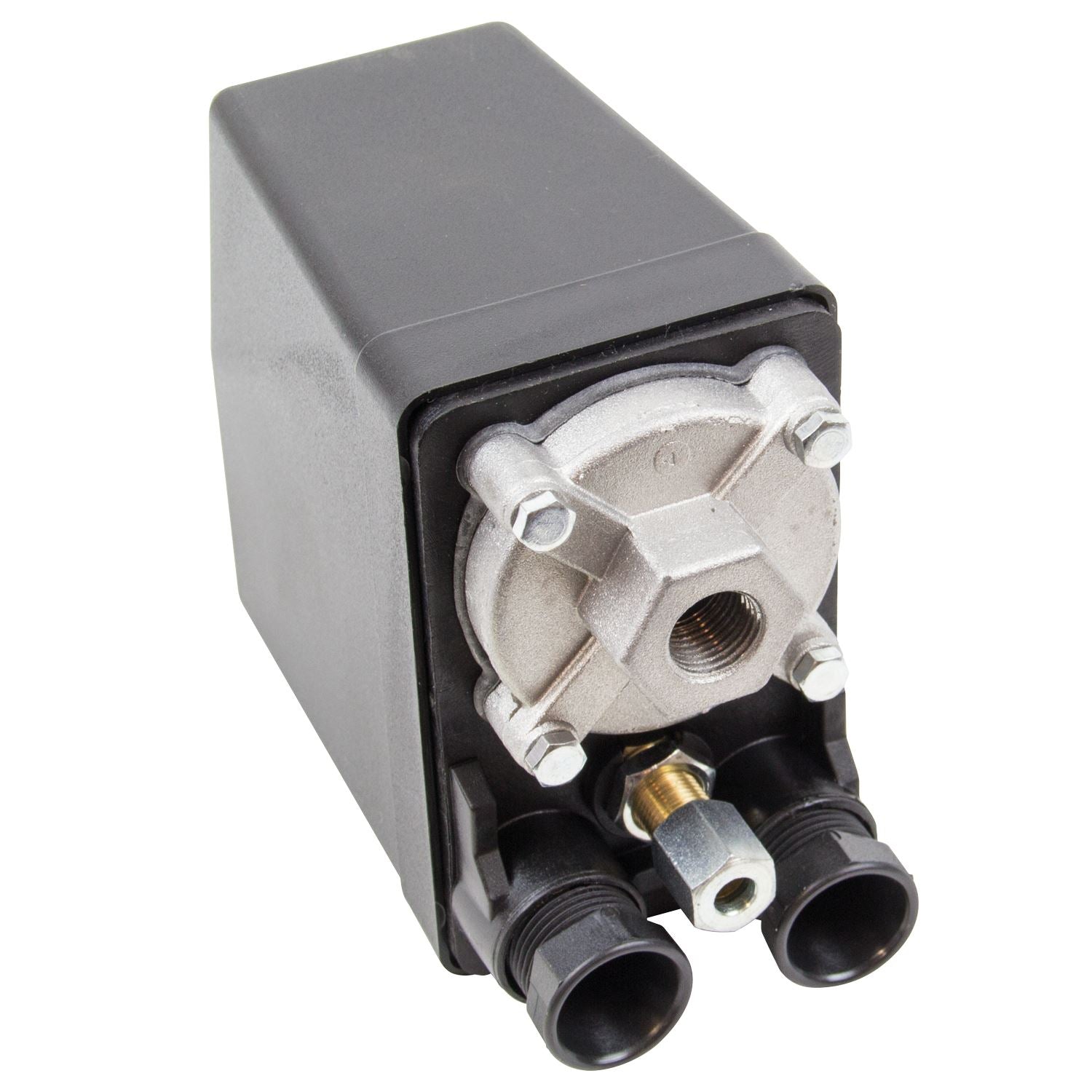

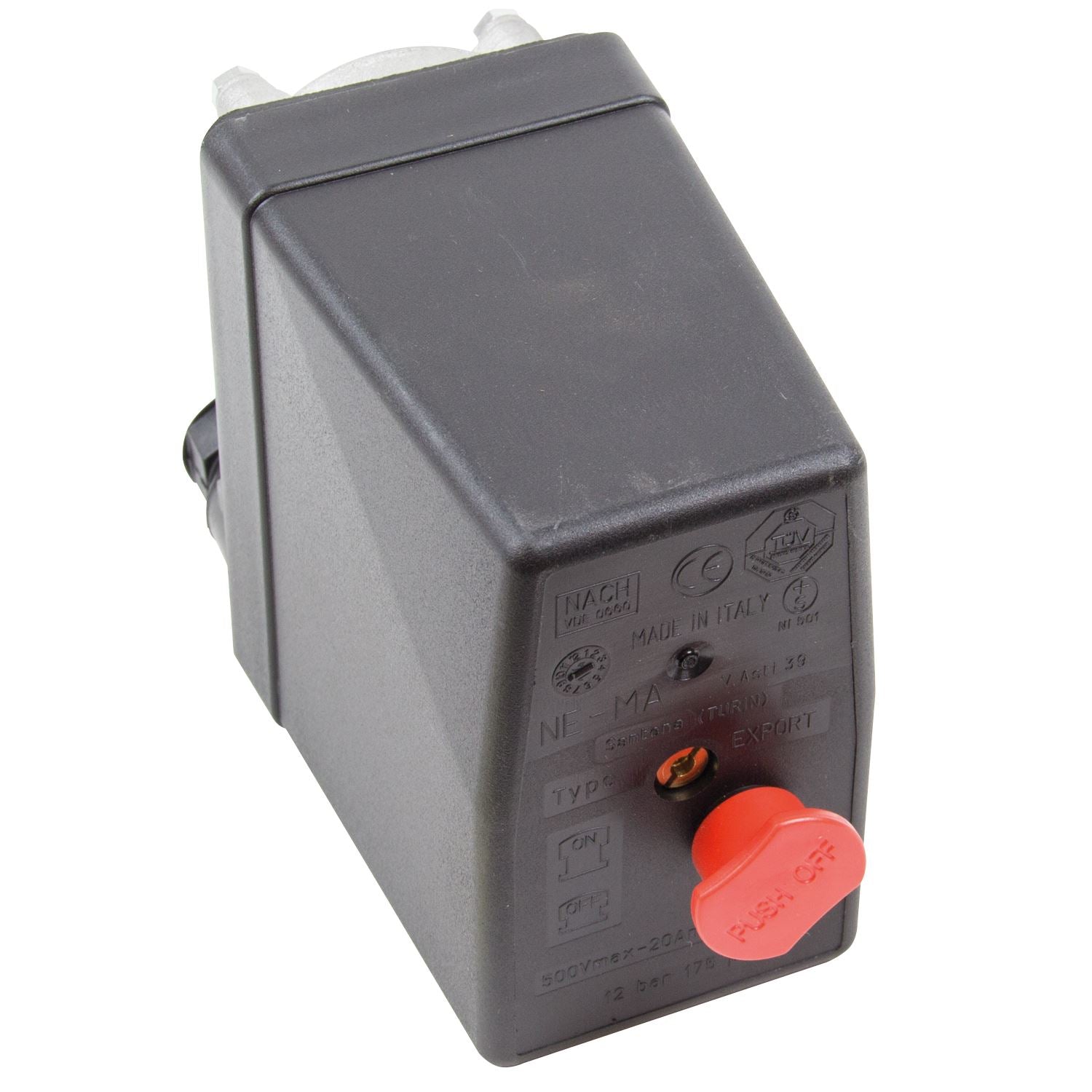

SIP Industrial 1/4" 1-Way 3-PHASE Pressure Switch

The SIP 1/4" 1-Way 3-PHASE Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and offers dependable and long-lasting use.

• 1/4" 1-way 3-phase pressure switch is easy-to-install
• Easily adjustable cut-off pressure via built-in switch
• Designed to start and stop electric compressor motors
• Manufactured for long-lasting and reliable use
• Integrated bleed facility with 6mm pipe entry

Technical Specification

• ITEM NO. 02315
• Switch Type: PS20
• Voltage / Current: 400v / 20A
• Overload: N/A
• Inlet Connection Size: 1/4" BSP
• Inlet Connection Type Bottom Entry
• Side Port Size: None
• Switch Type: Pull
• Phase Type: 3-phase
• No. of Poles: 3 poles
