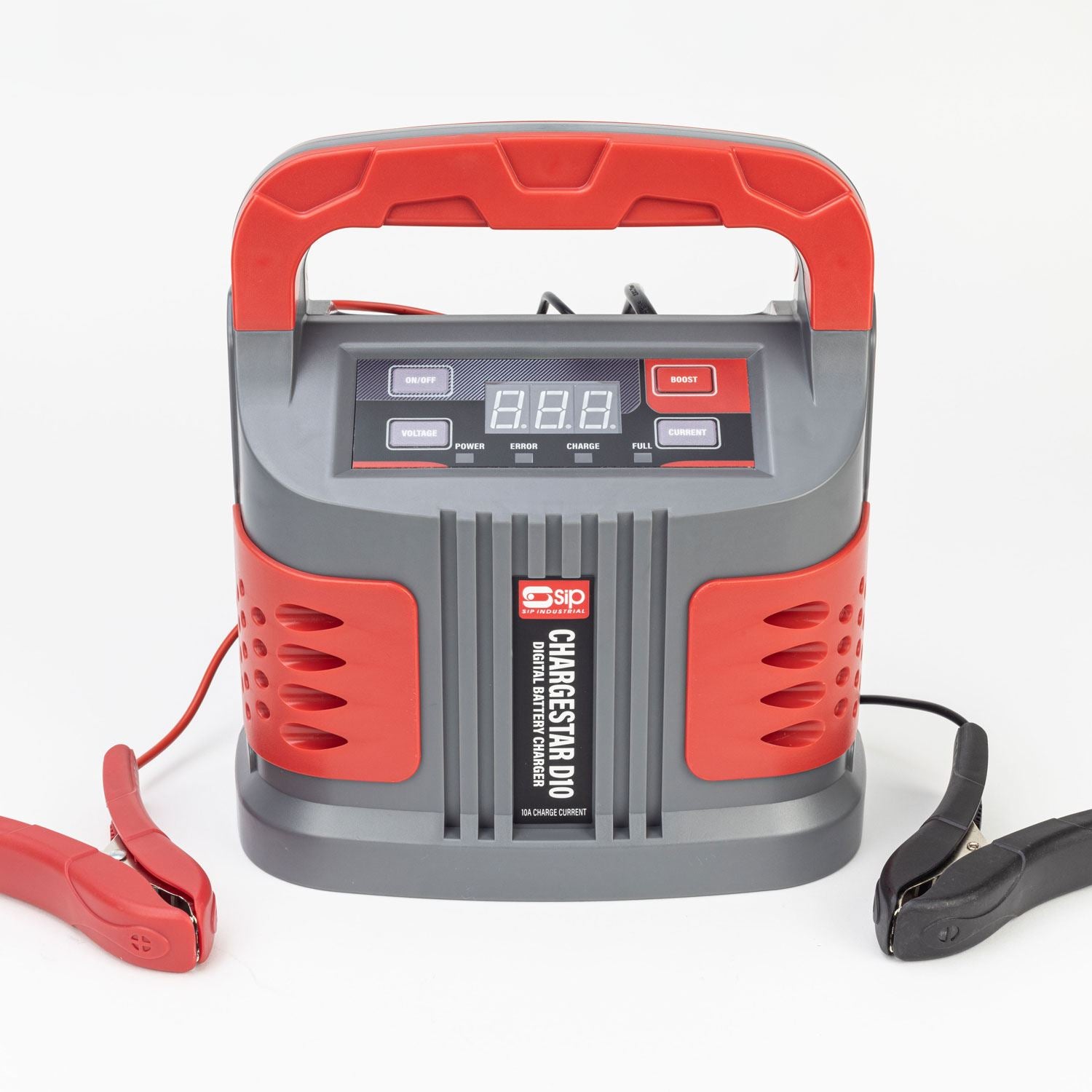

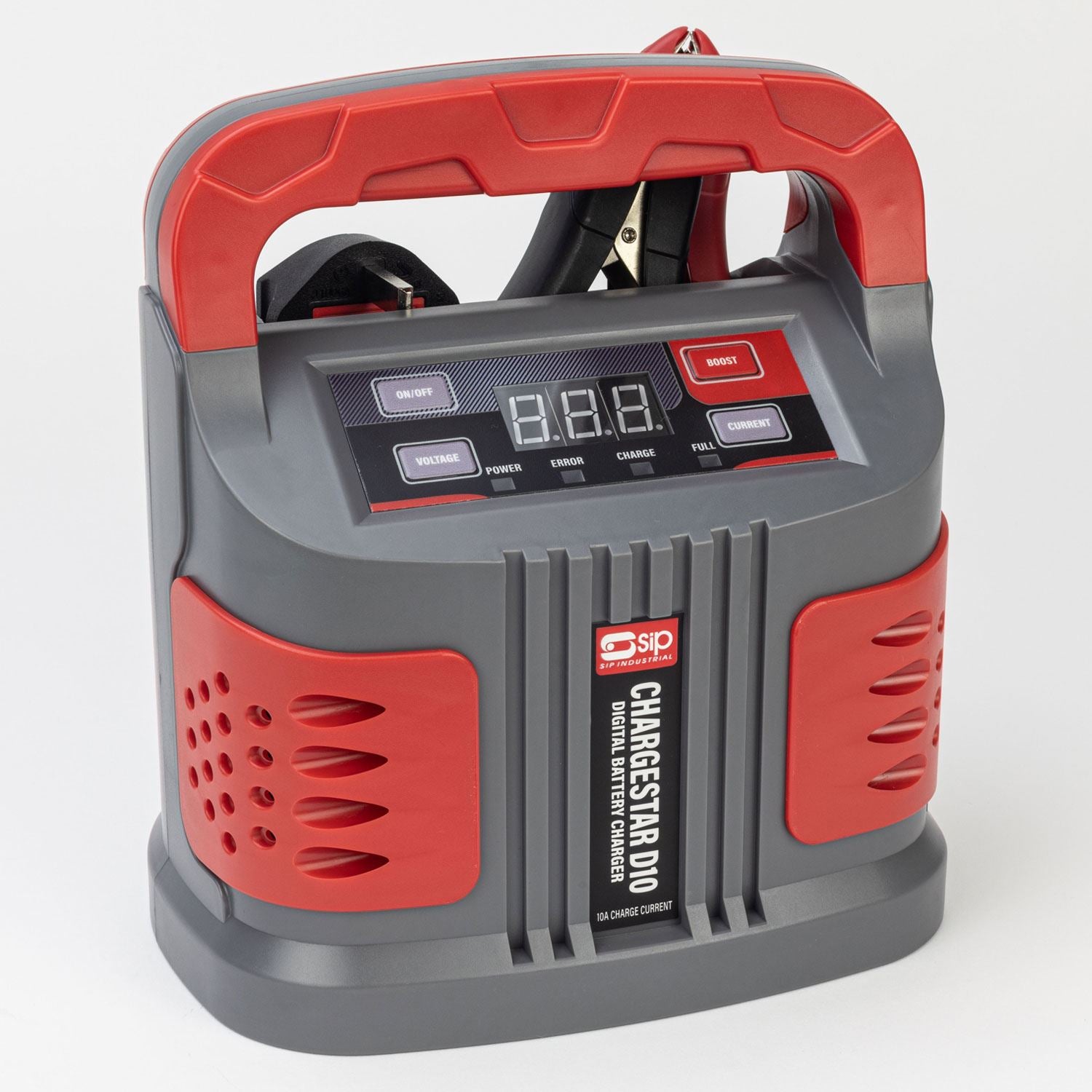

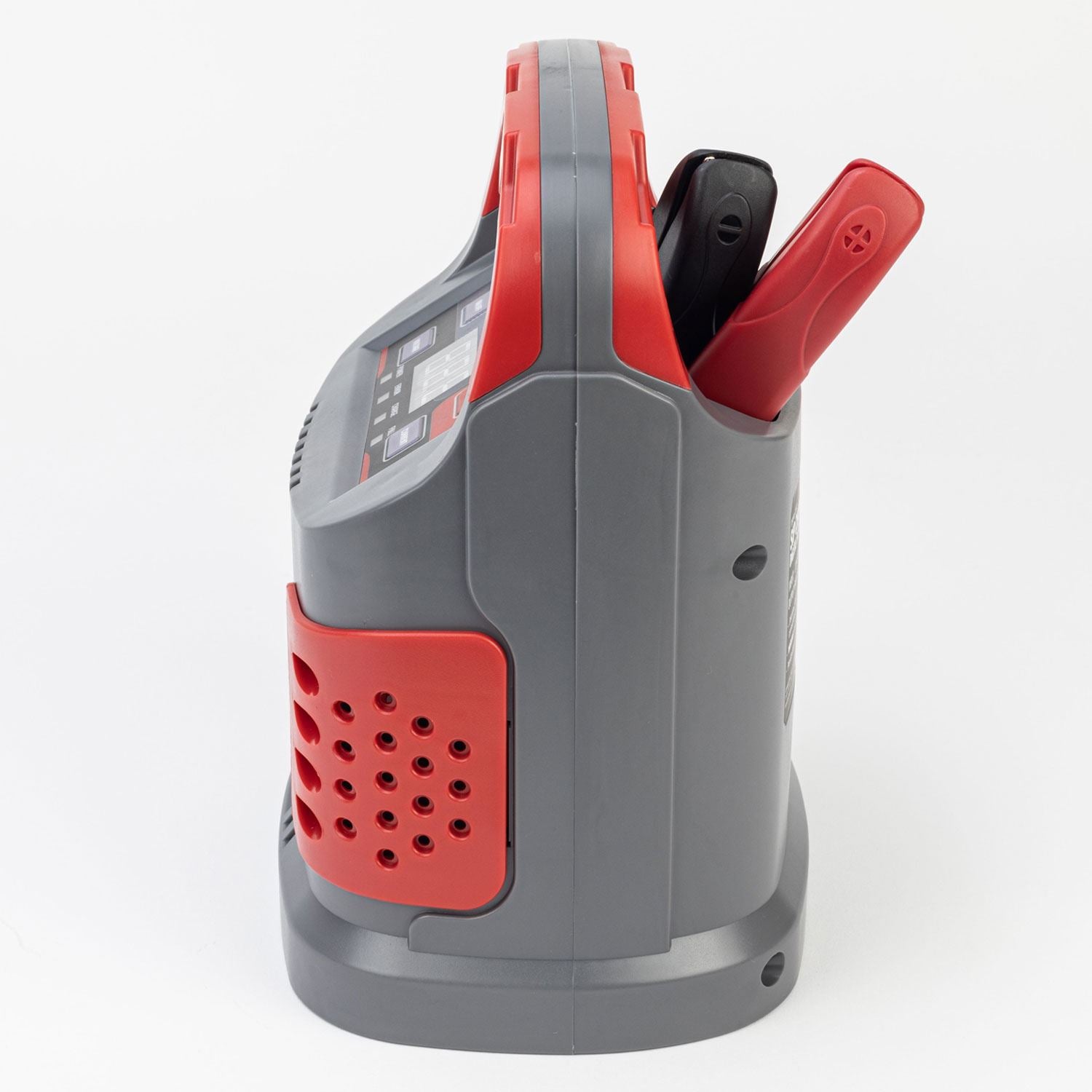

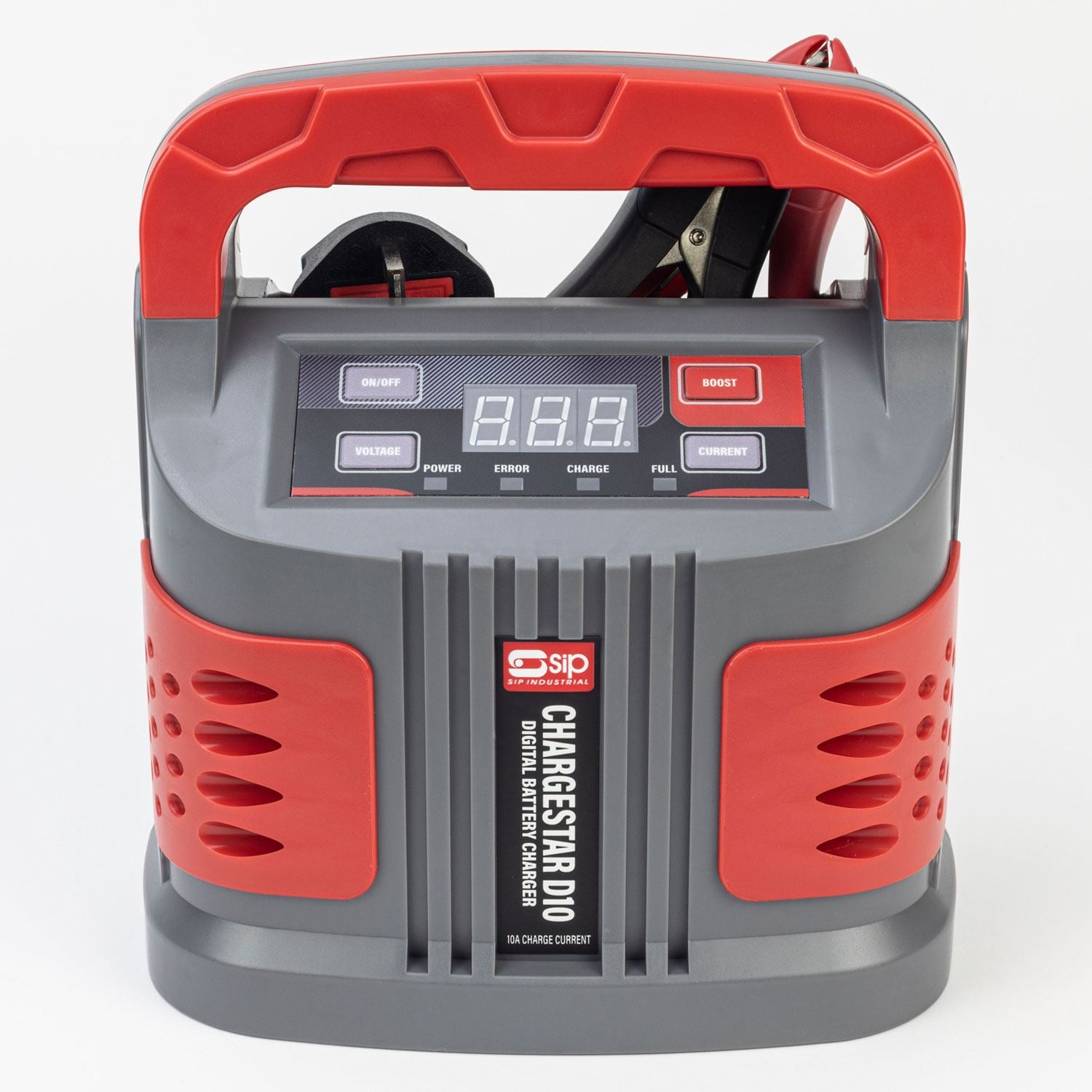

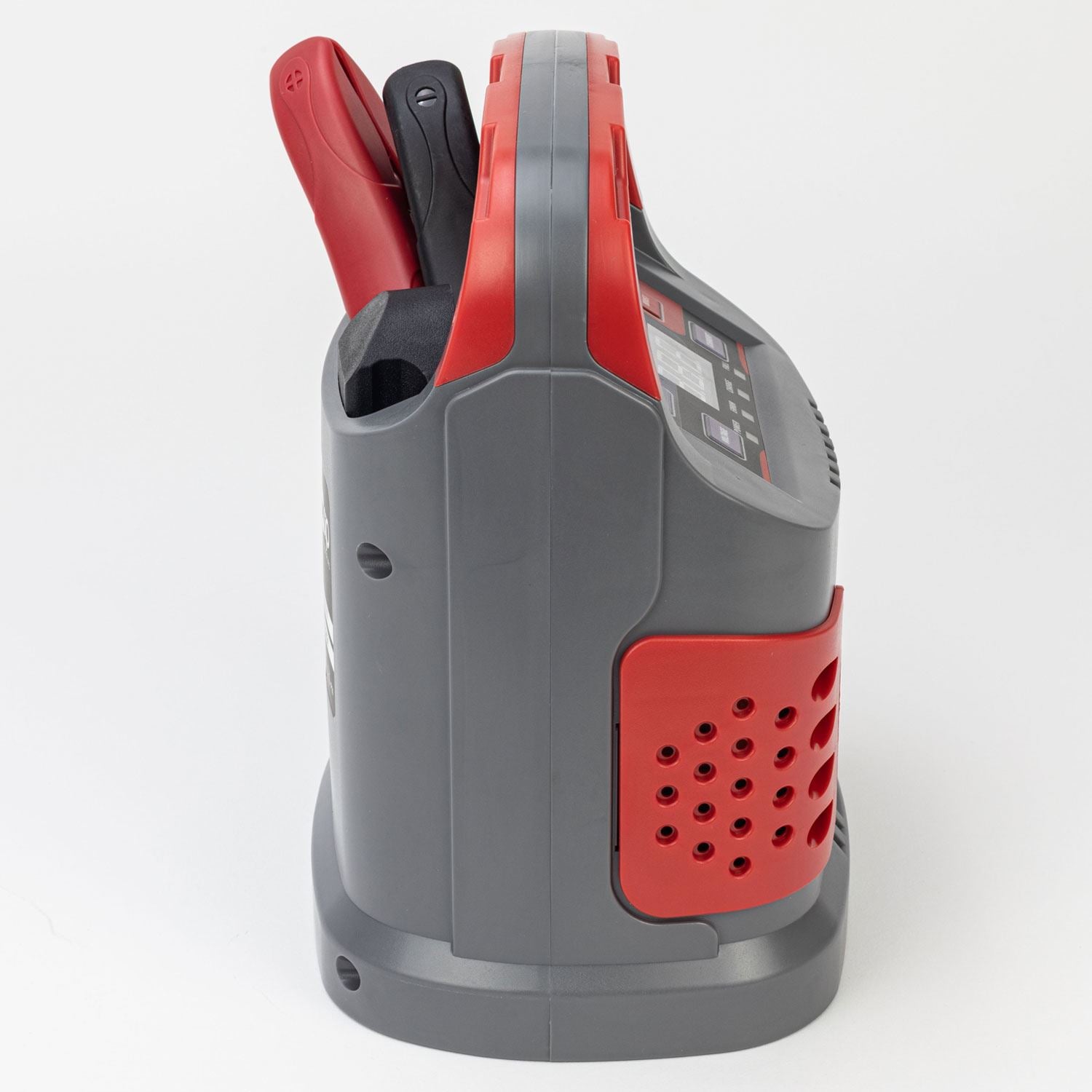

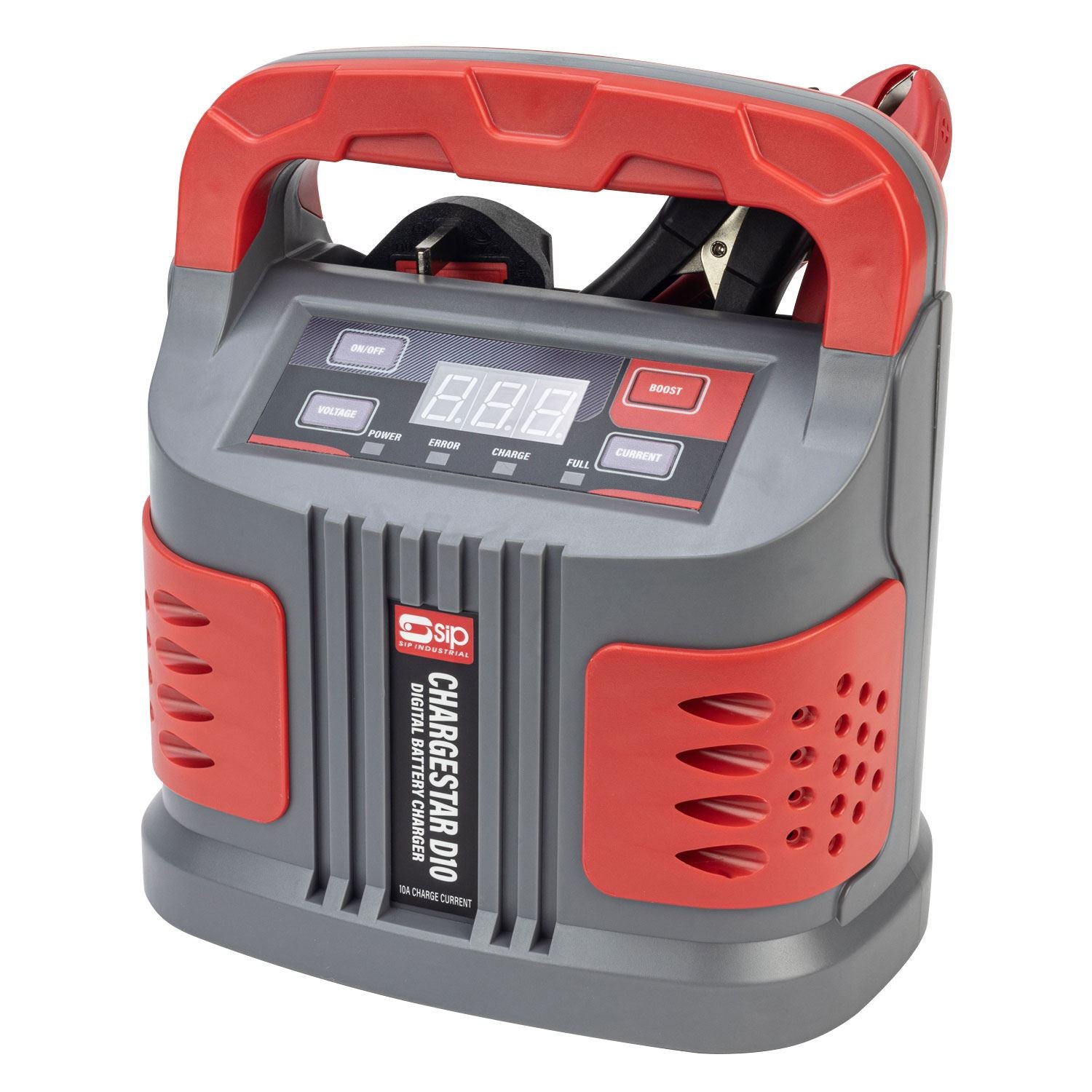

SIP CHARGESTAR D10 Digital Battery Charger

The SIP CHARGESTAR D10 Digital Battery Charger is a compact and portable digital battery charger designed for all types of 6v/12v lead acid batteries.

Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D10 makes battery charging easier, faster and safer.

Applications & uses: Ideal for battery charging applications in automotive and workshop environments.

• VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 6V/12V LEAD ACID BATTERIES: This includes WET, MF, EFB, GEL, AGM and CA battery types. Charging capacity of up to 200Ah.

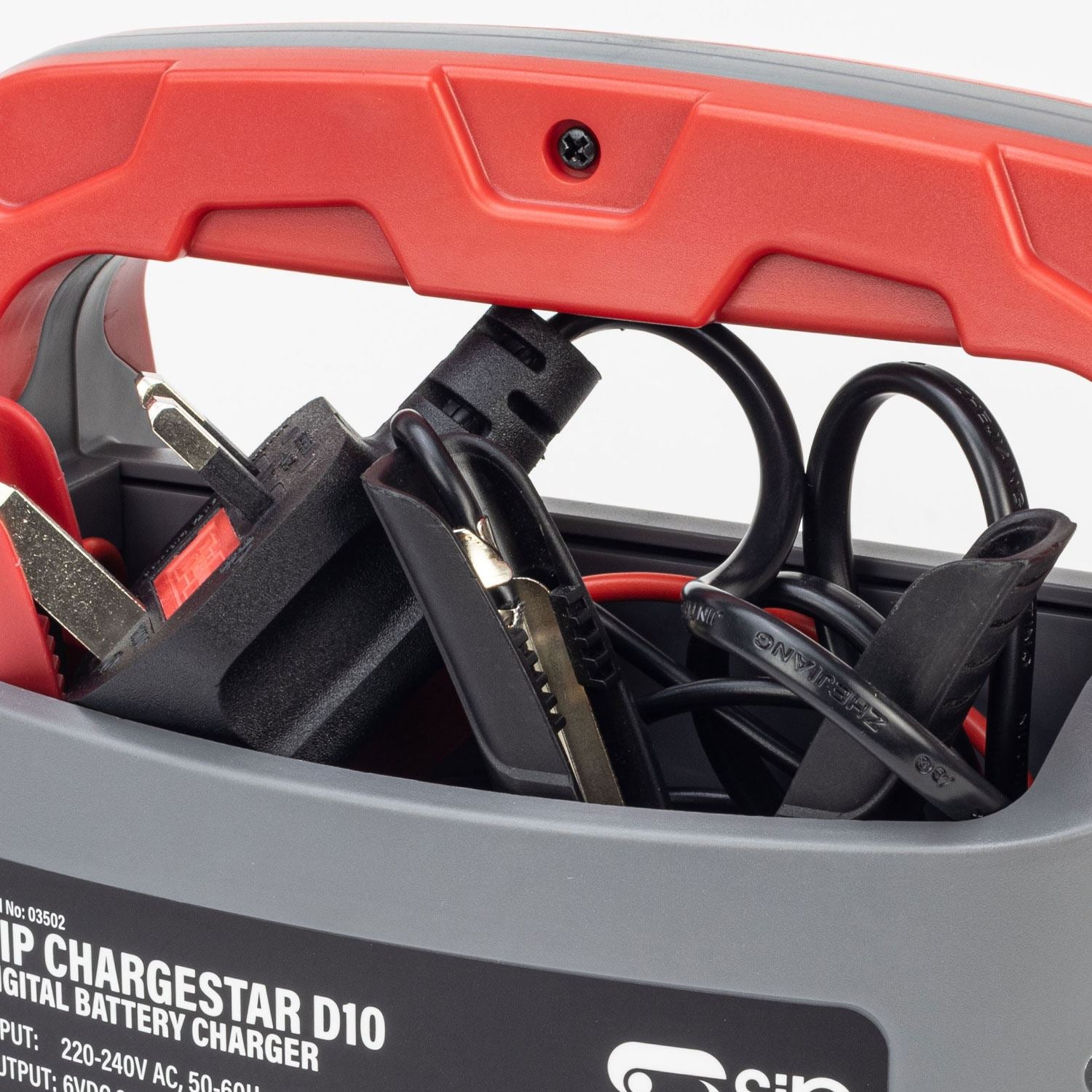

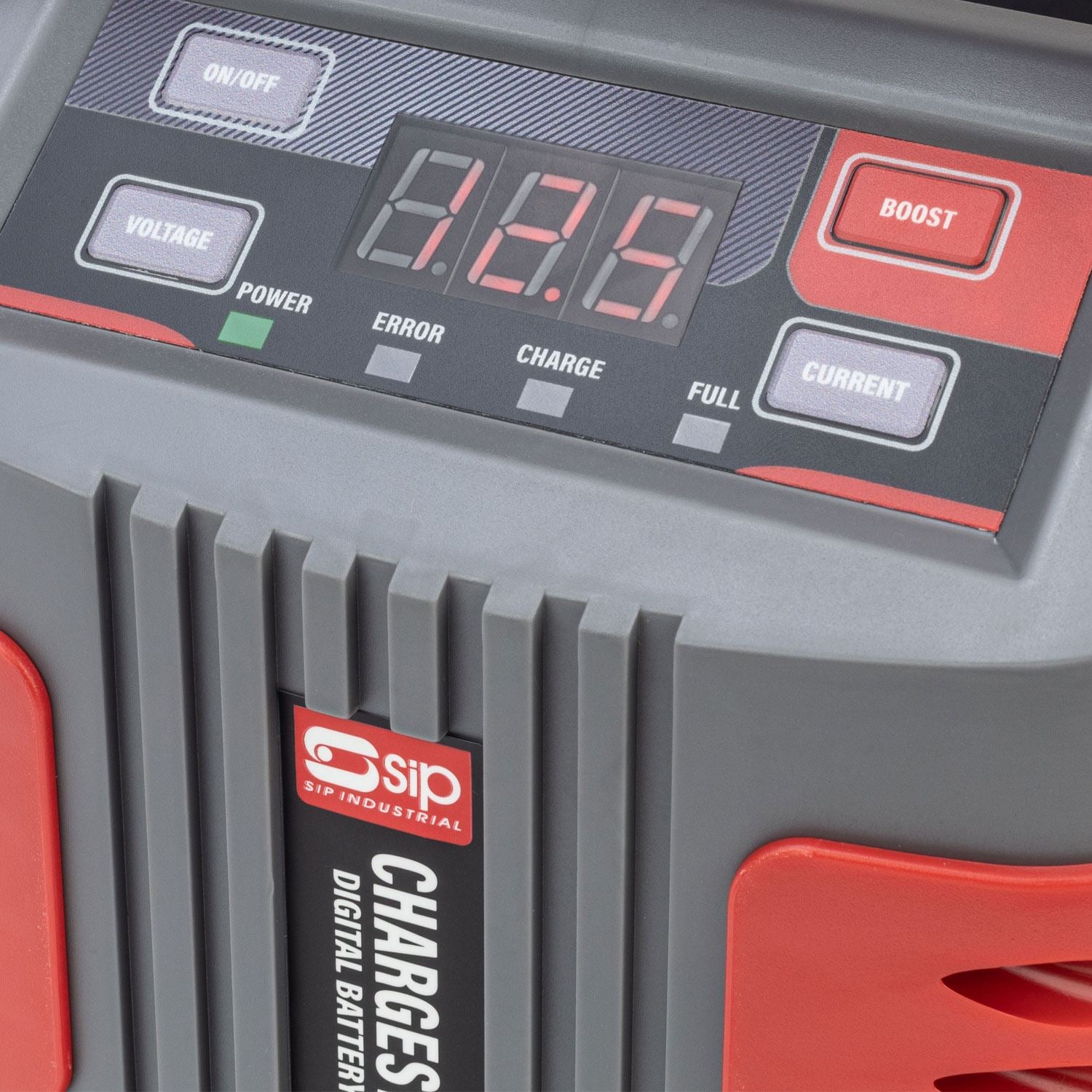

• MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG LIFE BATTERY PERFORMANCE: An intelligent 6-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle. Once battery capacity is full, the unit stops charging and a control panel light is displayed. If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible. 'Boost - Fast Charge' mode delivers 5mins of continuous 15A charge. Supplied with 2x 1.2mtr leads and clip clamps. LED display screen and intuitive soft touch control panel. Compact and lightweight design with carry handle for easy movement between use.
• BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY: Anti-spark system prevents sparks when connecting the clips to the battery terminals. Reverse polarity and overcharge protection ensure the unit operates only when correctly connected. Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.

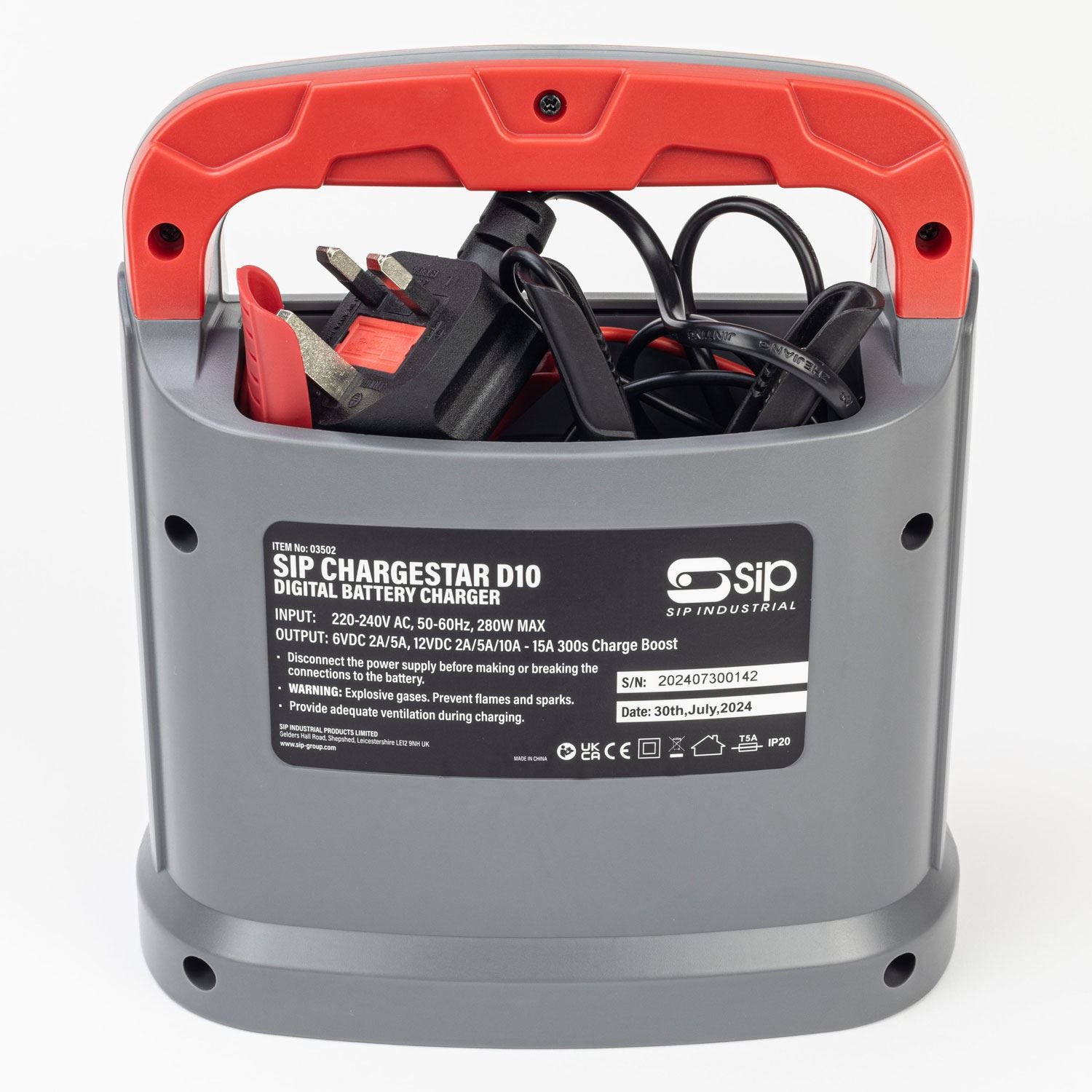

Technical Specification

• ITEM NO. 03502
• Input Supply: 220v - 240v 50-60Hz, 220w max.
• Input Fuse: 10A
• Charging Voltage: 6v / 12v DC
• Charging Current: 2A / 5A / 10A
• Battery Low Voltage Detector: >3v
• Charging Steps: 6; Fully Automatic Charging Cycle
• Battery Types: All 12v Lead Acid (WET, MF, EFB, GEL, AGM)
• Battery Capacity: 4Ah - 220Ah (Charging)
• Temperature Range: 0�C - 40�C
• Protection Level: IP20
